Board mount DC-DC converter with adjustable output voltage from 800mV to 34V, capable of delivering up to 10A. Features a high efficiency of 98% and a wide input voltage range of 4.5V to 36V. Integrated protection includes UVLO, OVP, and OCP. This compact LGA package measures 0.59 x 0.59 x 0.11 inches and operates across a temperature range of -40°C to 85°C.
PackageLGA
Quick Jump:
Technical Specifications
Analog Devices LTM4609IV#PBF technical specifications.
General
Package/Case
LGA
Efficiency
98%
Features
UVLO, OVP, OCP
Height
0.11inch
Length
0.59inch
Max Input Voltage
36V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10A
Max Output Voltage
34V
Min Output Voltage
800mV
Number of Outputs
1
Operating Supply Current
2.8mA
Output Current
10A
Output Type
Adjustable
Output Voltage
34V
Package Quantity
119
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
µModule®
Topology
Buck-Boost
Voltage - Output 1
34V
Width
0.59inch
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM4609IV#PBF Datasheet
Download the complete datasheet for Analog Devices LTM4609IV#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

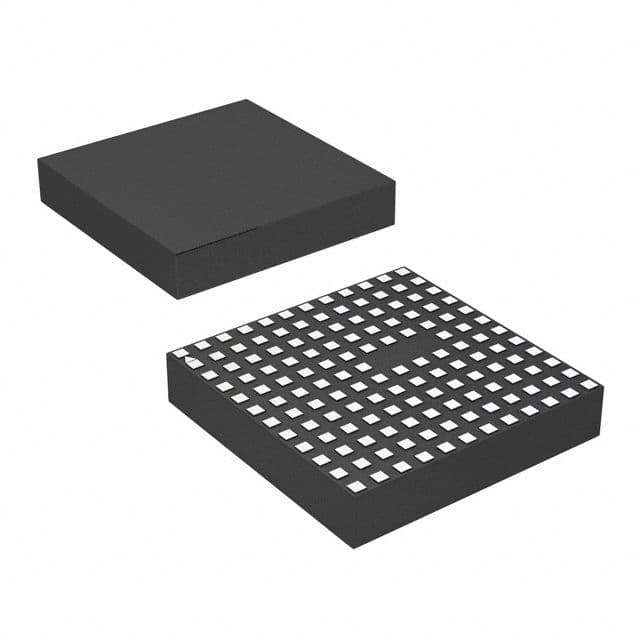

Product Images
