Adjustable DC-DC converter with 5A output current, capable of 3.3V to 15V output voltage. Features a wide input voltage range from 5V to 36V and a single channel, single output configuration. Operates within a temperature range of -40°C to 125°C and is housed in an LGA package. This lead-free, RoHS-compliant component offers a compact 0.59 x 0.59 x 0.11 inch footprint.
PackageLGA
Quick Jump:
Technical Specifications
Analog Devices LTM4612EV#PBF technical specifications.
General
Package/Case
LGA
Height
0.11inch
Lead Free
Lead Free
Length
0.59inch
Max Input Voltage
36V
Min Input Voltage
5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Voltage
15V
Min Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Operating Supply Current
4.5mA
Output Current
5A
Output Type
Adjustable
Output Voltage
15V
Package Quantity
119
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
µModule®
Voltage - Output 1
15V
Width
0.59inch
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM4612EV#PBF Datasheet
Download the complete datasheet for Analog Devices LTM4612EV#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

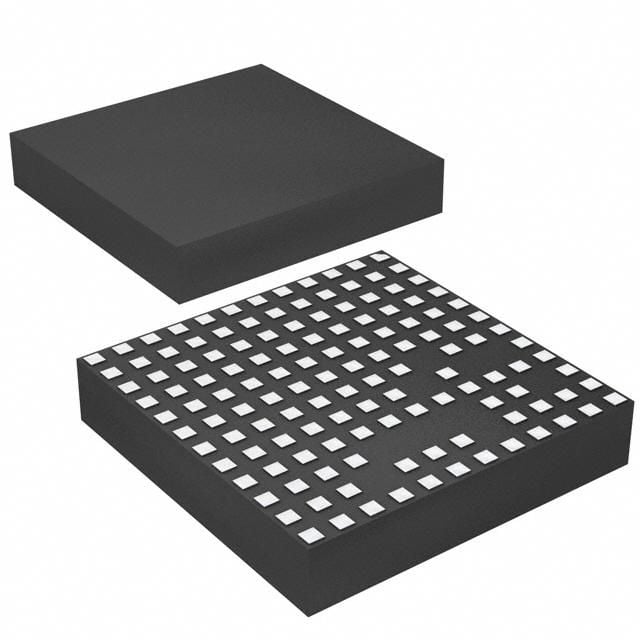

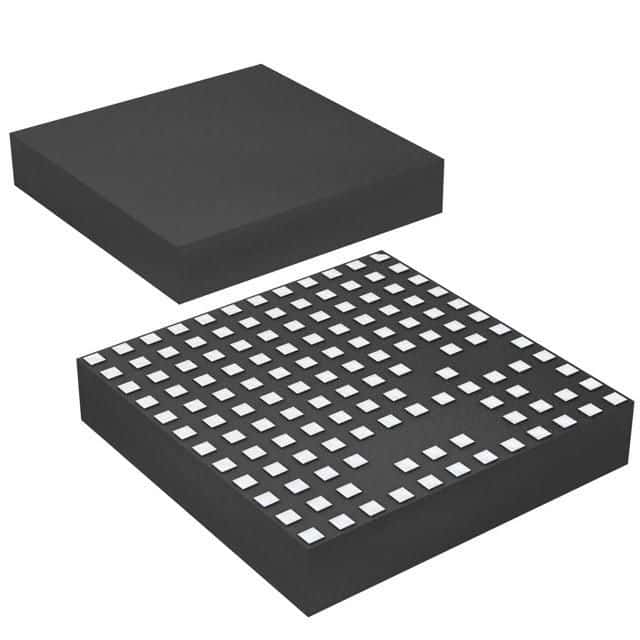

Product Images
