High-efficiency DC-DC converter featuring a single, adjustable output up to 15V and 8A maximum output current. Operating from a 5V to 36V input range, this power management IC achieves up to 96% efficiency. Encased in an LGA package, it offers a wide operating temperature range of -40°C to 125°C.
PackageLGA
Quick Jump:
Technical Specifications
Analog Devices LTM4613IV#PBF technical specifications.
General
| Package/Case | LGA |
| Efficiency | 96% |
| Height | 0.17inch |
| Lead Free | Lead Free |
| Length | 0.59inch |
| Max Input Voltage | 36V |
| Min Input Voltage | 5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 8A |
| Max Output Voltage | 15V |
| Min Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Operating Supply Current | 78mA |
| Output Current | 8A |
| Output Type | Adjustable |
| Output Voltage | 15V |
| Package Quantity | 119 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | µModule® |
| Voltage - Output 1 | 12V |
| Width | 0.59inch |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTM4613IV#PBF Datasheet
Download the complete datasheet for Analog Devices LTM4613IV#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

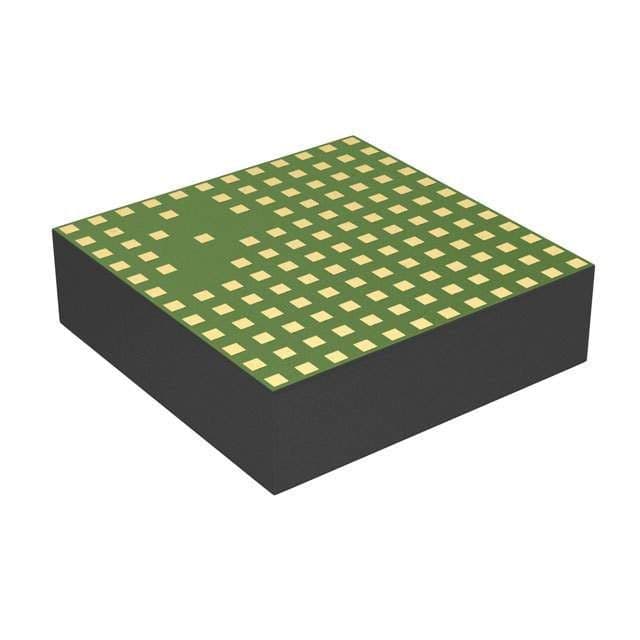

Product Images
