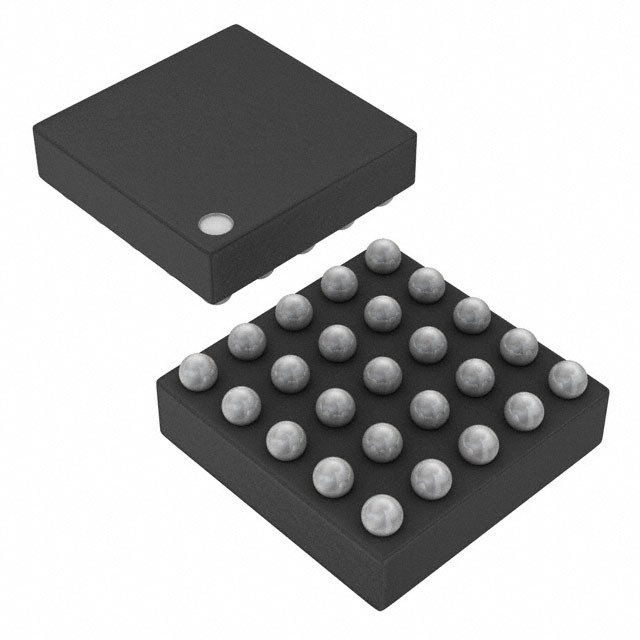

Surface mount DC-DC converter, buck, adjustable output from 600mV to 5.5V, with a maximum output current of 4A. Features include UVLO, OVP, OCP, and OTP protection. Operates from a 2.375V to 14V input voltage range and supports a maximum operating temperature of 125°C. This component is housed in a 0.25 x 0.25 x 0.2 inch BGA package and is RoHS compliant.
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTM4624IY#PBF technical specifications.
General
Package/Case
BGA
Features
UVLO, OVP, OCP, OTP
Height
0.2inch
Lead Free
Lead Free
Length
0.25inch
Max Input Voltage
14V
Min Input Voltage
2.375V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Output Voltage
5.5V
Min Output Voltage
600mV
Max Power Dissipation
22W
Mount
Surface Mount
Number of Outputs
1
Output Current
4A
Package Quantity
260
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LTM®, uModule®
Voltage - Output 1
5.5V
Width
0.25inch
Compliance
RoHS
Compliant
