Quad DC/DC regulator power module, configurable 4A output array. Features overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP). Operates from a 4V to 14V input voltage range. Offers four 5.5V outputs, each capable of up to 4A. Packaged in a 77-pin BGA with dimensions of 0.59 x 0.35 x 0.19 inches. Extended temperature range from -40°C to 125°C.
PackageBGA
Quick Jump:
Technical Specifications
Analog Devices LTM4644IY technical specifications.
General
Package/Case
BGA
Features
OVP, OCP, OTP
Height
0.19inch
Length
0.59inch
Max Input Voltage
14V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Number of Outputs
4
Output Current
4A
Output Voltage
5.5V
Packaging
Tray
RoHS Compliant
No
Series
µModule®
Voltage - Output 1
5.5V
Voltage - Output 2
5.5V
Voltage - Output 3
5.5V
Width
0.35inch
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices LTM4644IY Datasheet
Download the complete datasheet for Analog Devices LTM4644IY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

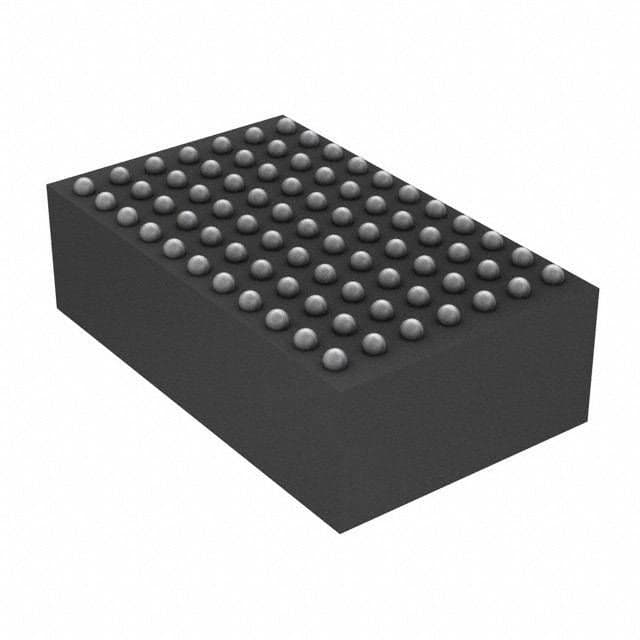

Product Images
