High-efficiency LED driver IC featuring a single output with analog and PWM dimming capabilities. Operates from a 3V to 30V input range, delivering up to 1A output current and 32V output voltage. Integrated protection features include OTP and SCP, with a 2MHz switching frequency. This µModule® component is housed in an LGA package, measuring 0.59 x 0.35 x 0.11 inches, and operates across a -40°C to 125°C temperature range.
PackageLGA
Quick Jump:
Technical Specifications
Analog Devices LTM8042EV#PBF technical specifications.
General
Package/Case
LGA
Dimming
Analog, PWM
Features
OTP, SCP
Height
0.11inch
Length
0.59inch
Max Input Voltage
30V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Power Dissipation
32W
Max Supply Voltage
30V
Min Supply Voltage
3V
Number of Outputs
1
Number of Segments
8
Operating Supply Current
4.2mA
Output Current
1A
Output Voltage
32V
Package Quantity
170
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
µModule®
Topology
Buck-Boost
Weight
0.002lb
Width
0.35inch
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM8042EV#PBF Datasheet
Download the complete datasheet for Analog Devices LTM8042EV#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

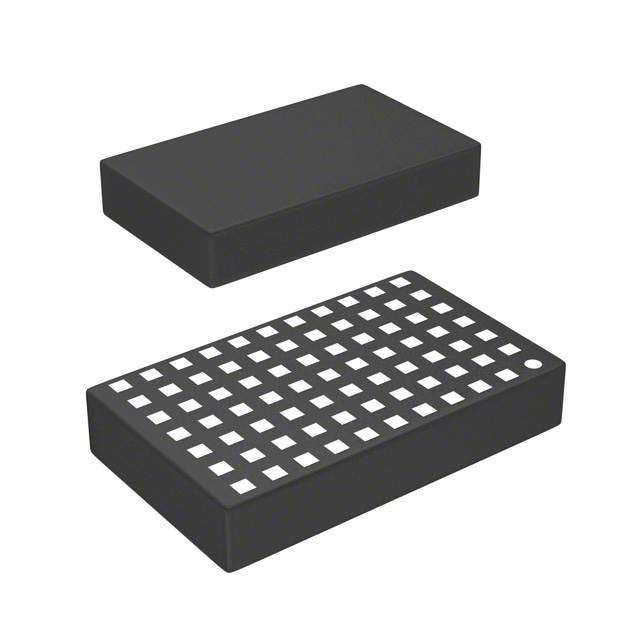

Product Images
