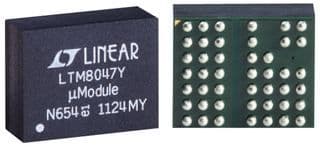

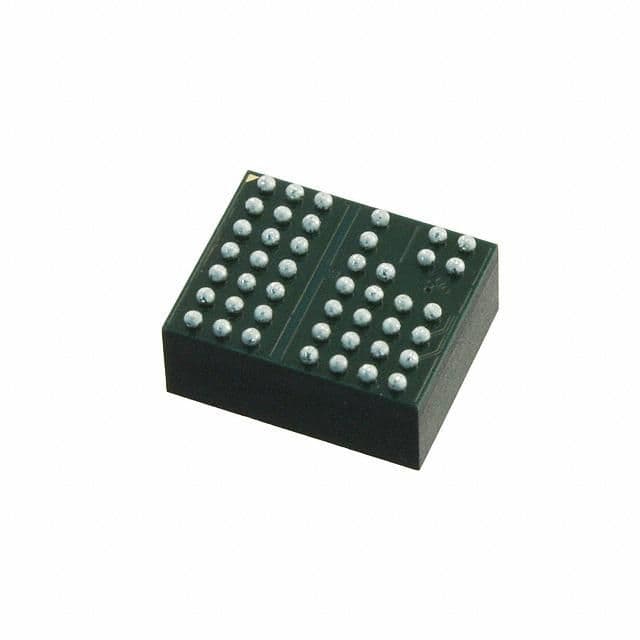

Board mount DC-DC converter featuring a flyback topology. Offers a configurable output voltage range of 2.5V to 12V with a maximum output current of 440mA. Operates from a 3.1V to 32V input voltage and provides 725V isolation. Includes undervoltage lockout (UVLO) protection and operates across a wide temperature range from -55°C to 125°C. Packaged in a BGA with surface mount capability.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices LTM8047MPY#PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices LTM8047MPY#PBF technical specifications.
| Package/Case | BGA |
| Features | UVLO |
| Height | 0.19inch |
| Isolation Voltage | 725V |
| Length | 0.44inch |
| Max Input Voltage | 32V |
| Min Input Voltage | 3.1V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 440mA |
| Max Output Voltage | 12V |
| Min Output Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 440mA |
| Output Voltage | 12V |
| Package Quantity | 168 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | µModule® |
| Topology | Flyback |
| Voltage - Output 1 | 12V |
| Width | 0.35inch |
| RoHS | Compliant |
