Analog Devices
LTM9010CY-14#PBF
LINEAR TECHNOLOGY LTM9010CY-14#PBF Analogue to Digital Converter, 14 bit, 105 MSPS, Single, 1.7 V, 1.9 V, BGA
PackageBGA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTM9010CY-14#PBF technical specifications.
General
| Package/Case | BGA |
| Integral Nonlinearity (INL) | 3.25LSB |
| Interface | LVDS, Serial |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1.11W |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 476mA |
| Number of Bits | 14 |
| Number of Converters | 8 |
| Number of Elements | 8 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 210 |
| Packaging | Tray |
| Polarity | Bipolar |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 105000000S/s |
| Series | µModule® |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTM9010CY-14#PBF Datasheet
Download the complete datasheet for Analog Devices LTM9010CY-14#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

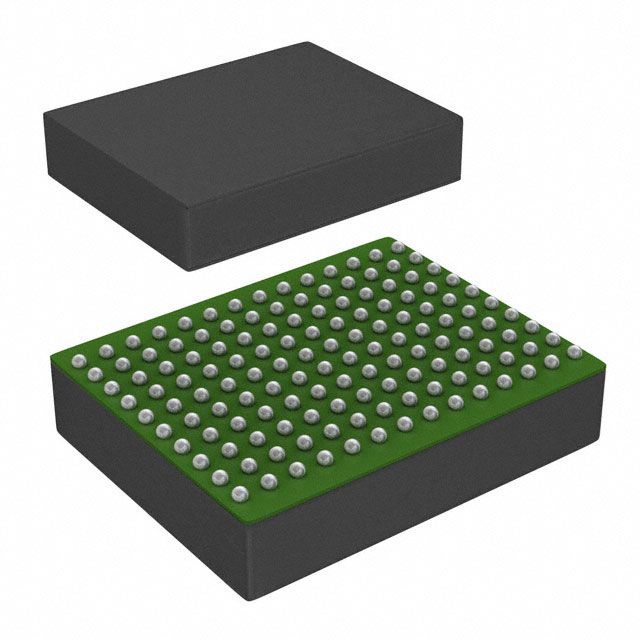

Product Images
