Single operational amplifier featuring 1.3MHz bandwidth and 0.7V/µs slew rate. Achieves 125dB common mode rejection ratio and 130dB power supply rejection ratio. Offers low 500pA input bias current and 60µV input offset voltage. Operates from 2.5V to 15V dual supply with 500µA quiescent current. Packaged in a 3mm x 3mm x 0.85mm MSOP.
PackageMSOP
Current400uA
Quick Jump:
Technical Specifications
Analog Devices OP1177ARMZ technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.3MHz
Package/Case
MSOP
Common Mode Rejection Ratio
125dB
Gain Bandwidth Product
1.3MHz
Height
0.85mm
Input Bias Current
500pA
Input Offset Voltage (Vos)
60uV
Lead Free
Contains Lead
Length
3mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
2.5V
Max Input Voltage
13.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
500uA
Output Current
10mA
Output Current per Channel
10mA
Package Quantity
50
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
130dB
Quiescent Current
500uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.7V/µs
Supply Current
400uA
Supply Type
Dual
Unity Gain Bandwidth Product
1.3MHz
Voltage Gain
126.02dB
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices OP1177ARMZ Datasheet
Download the complete datasheet for Analog Devices OP1177ARMZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

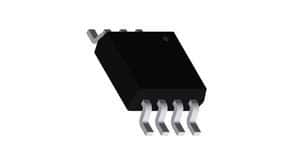

Product Images
