Precision single operational amplifier featuring low input bias current of 500pA and low input offset voltage of 60uV. Offers a 1.3MHz gain bandwidth product and 0.7V/µs slew rate. Achieves high performance with 125dB CMRR and 130dB PSRR. Operates from dual supplies ranging from ±2.5V to ±15V, or single supply from 5V to 36V. Housed in a compact 5mm x 4mm x 1.5mm package.
PackageR
Current400uA
Quick Jump:
Technical Specifications
Analog Devices OP1177ARZ technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.3MHz
Package/Case
R
Common Mode Rejection Ratio
125dB
Gain Bandwidth Product
1.3MHz
Height
1.5mm
Input Bias Current
500pA
Input Offset Voltage (Vos)
60uV
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
2.5V
Max Input Voltage
13.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
5V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
500uA
Output Current
10mA
Output Current per Channel
10mA
Package Quantity
98
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
130dB
Quiescent Current
500uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.7V/µs
Supply Current
400uA
Supply Type
Dual
Unity Gain Bandwidth Product
1.3MHz
Voltage Gain
126.02dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices OP1177ARZ Datasheet
Download the complete datasheet for Analog Devices OP1177ARZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

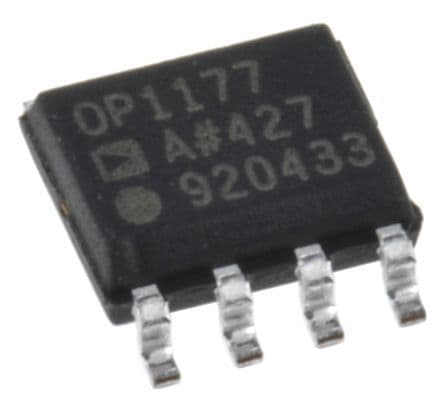

Product Images
