Dual operational amplifier featuring a 3.25MHz gain bandwidth product and 4V/µs slew rate. Offers 100µV input offset voltage and 80nA input bias current for precision applications. Operates from a wide supply voltage range of 1.5V to 36V, with a maximum operating temperature of 125°C. Provides 90dB common mode rejection ratio and 90dB power supply rejection ratio. This general-purpose amplifier is packaged in tape and reel.
PackageR
Quick Jump:
Technical Specifications
Analog Devices OP284ESZ-REEL7 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
R
Common Mode Rejection Ratio
90dB
Gain Bandwidth Product
3.25MHz
Input Bias Current
80nA
Input Offset Voltage (Vos)
100uV
Input Voltage Noise Density
3.9nV/sqrt Hz
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
3V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
4mA
Output Current per Channel
10mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
90dB
Quiescent Current
2mA
Radiation Hardening
No
RoHS Compliant
Yes
Settling Time
4us
Slew Rate
4V/µs
Technology
BIPOLAR
Unity Gain Bandwidth Product
3.25MHz
Voltage Gain
107.6dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices OP284ESZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices OP284ESZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

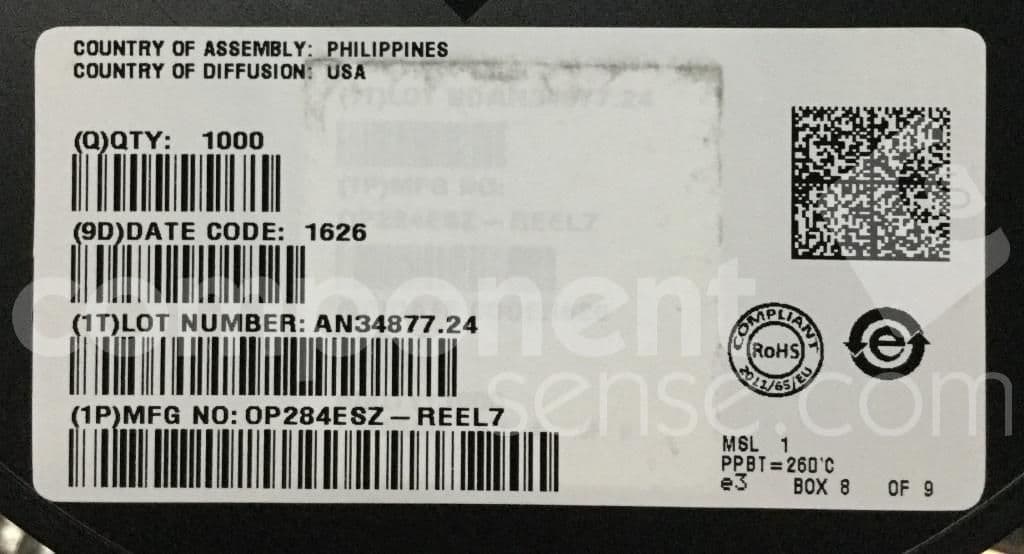

Product Images
