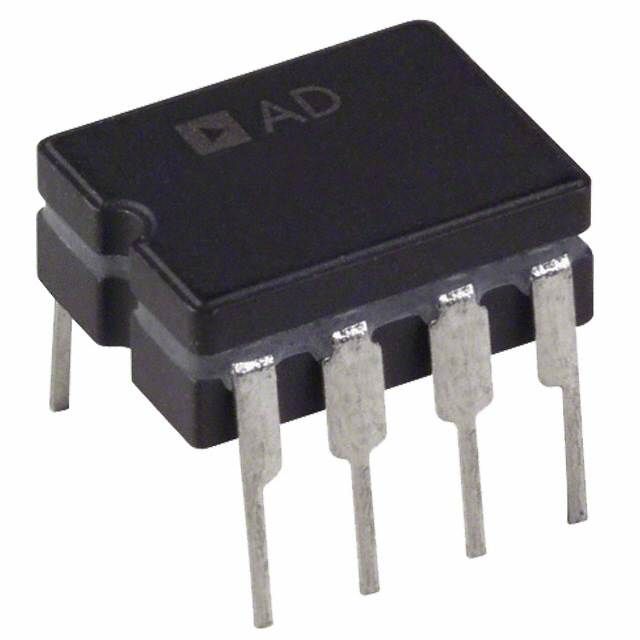

Dual operational amplifier featuring precision performance with a low input bias current of 50pA and an input offset voltage of 50µV. Offers a gain bandwidth product of 500kHz and a slew rate of 0.15V/µs. Supports dual supply voltages from 2V to 18V, with a maximum of 20V. Achieves high common mode rejection ratio (CMRR) of 135dB and power supply rejection ratio (PSRR) of 125dB. Housed in a Q package with dimensions of 10.29mm (L) x 7.87mm (W) x 3.56mm (H).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices OP297EZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Amplifier Type | PRECISION |
| Bandwidth | 500kHz |
| Package/Case | Q |
| Common Mode Rejection Ratio | 135dB |
| Dual Supply Voltage | 18V |
| Gain Bandwidth Product | 500kHz |
| Height | 3.56mm |
| Input Bias Current | 50pA |
| Input Capacitance | 3pF |
| Input Offset Voltage (Vos) | 50uV |
| Lead Free | Contains Lead |
| Length | 10.29mm |
| Max Dual Supply Voltage | 20V |
| Min Dual Supply Voltage | 2V |
| Max Input Voltage | 14V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 20V |
| Min Supply Voltage | 2V |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Operating Supply Current | 1.25mA |
| Package Quantity | 48 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 125dB |
| Quiescent Current | 625uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Slew Rate | 0.15V/µs |
| Supply Current | 525uA |
| Supply Type | Dual |
| Voltage Gain | 132.04dB |
| Width | 7.87mm |
| RoHS | Not CompliantNo |
