Quad operational amplifier featuring a 500kHz bandwidth and 0.15V/µs slew rate. This general-purpose amplifier offers a low input offset voltage of 220µV and a low input bias current of 750pA. It operates with dual supply voltages from 3V to 18V, with a maximum of 20V. Key performance metrics include a 135dB common-mode rejection ratio and a 134dB power supply rejection ratio. The component is housed in a Q package with dimensions of 19.94mm length, 7.87mm width, and 3.56mm height.
PackageQ
Current600uA
Quick Jump:
Technical Specifications

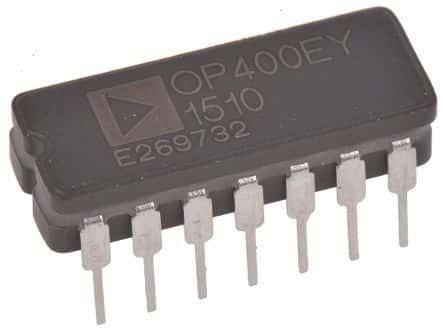

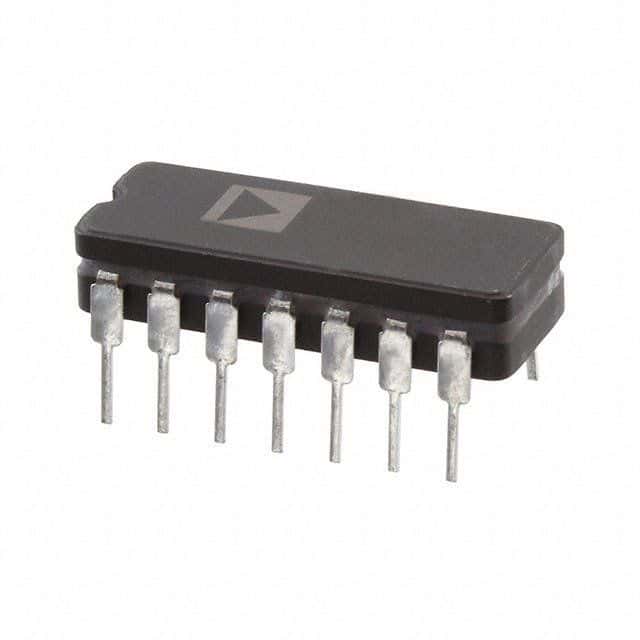

Analog Devices OP400EY technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
500kHz
Package/Case
Q
Common Mode Rejection Ratio
135dB
Dual Supply Voltage
18V
Gain Bandwidth Product
500kHz
Height
3.56mm
Input Bias Current
750pA
Input Capacitance
3.2pF
Input Offset Voltage (Vos)
220uV
Input Voltage Noise Density
22nV/sqrt Hz
Lead Free
Contains Lead
Length
19.94mm
Max Dual Supply Voltage
20V
Min Dual Supply Voltage
3V
Max Input Voltage
13V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Current
2.9mA
Max Supply Voltage
18V
Min Supply Voltage
4V
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
2.9mA
Package Quantity
25
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
134dB
Quiescent Current
725uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Slew Rate
0.15V/µs
Supply Current
600uA
Supply Type
Dual
Technology
BIPOLAR
Unity Gain Bandwidth Product
500kHz
Voltage Gain
141.58dB
Width
7.87mm
Compliance
RoHS
Not CompliantNo
