ANALOG DEVICES

OP400GPZ

Datasheet

Quad Op Amp, 500kHz BW, 220uV Vos, 18V Dual Supply, Bipolar

Analog Devices

OP400GPZ

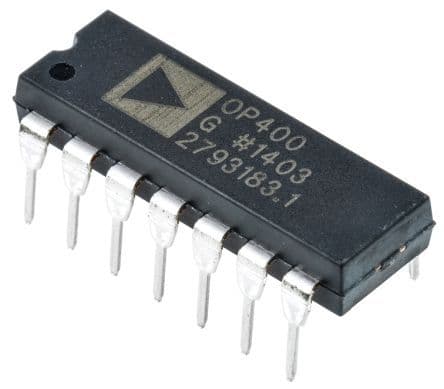

Name: OP400GPZ Analog Devices
Brand: Analog Devices
SKU: OP400GPZ

Quad Op Amp, 500kHz BW, 220uV Vos, 18V Dual Supply, Bipolar

Quad operational amplifier featuring low offset voltage of 220µV and low input bias current of 750pA. This general-purpose amplifier offers a 500kHz bandwidth and a 0.15V/µs slew rate, with a voltage gain of 136.9dB. Designed for dual supply operation from 3V to 18V, it exhibits high common mode rejection ratio (135dB) and power supply rejection ratio (134dB). The bipolar technology component operates across a wide temperature range of -55°C to 125°C.

PackageN

Current600uA

Quick Jump:

Technical Specifications

Analog Devices OP400GPZ technical specifications.

General

Amplifier Type	GENERAL PURPOSE
Bandwidth	500kHz
Package/Case	N
Common Mode Rejection Ratio	135dB
Dual Supply Voltage	18V
Gain Bandwidth Product	500kHz
Height	3.3mm
Input Bias Current	750pA
Input Capacitance	3.2pF
Input Offset Voltage (Vos)	220uV
Input Voltage Noise Density	22nV/sqrt Hz
Lead Free	Contains Lead
Length	19.05mm
Max Dual Supply Voltage	20V
Min Dual Supply Voltage	3V
Max Input Voltage	13V
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Max Supply Current	2.9mA
Max Supply Voltage	18V
Min Supply Voltage	3V
Number of Amplifiers	4
Number of Channels	4
Number of Circuits	4
Number of Elements	4
Operating Supply Current	2.9mA
Output Type	PUSH-PULL
Package Quantity	25
Packaging	Rail/Tube
Power Supply Rejection Ratio (PSRR)	134dB
Quiescent Current	725uA
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Slew Rate	0.15V/µs
Supply Current	600uA
Supply Type	Dual
Technology	BIPOLAR
Unity Gain Bandwidth Product	500kHz
Voltage Gain	136.9dB
Width	6.35mm
