Quad operational amplifier featuring 1.3MHz gain bandwidth product and 0.7V/µs slew rate. This general-purpose amplifier offers 75µV input offset voltage and 500pA input bias current, with 125dB common mode rejection ratio and power supply rejection ratio. Designed for dual supply operation from 2.5V to 15V, it provides 1mA output current per channel and operates across a -40°C to 125°C temperature range. Packaged in tape and reel, this RoHS compliant component is ideal for precision applications.
PackageR
Current400uA
Quick Jump:
Technical Specifications
Analog Devices OP4177ARZ-REEL7 technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | R |
| Common Mode Rejection Ratio | 125dB |
| Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 500pA |
| Input Offset Voltage (Vos) | 75uV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 2.5V |
| Max Input Voltage | 13.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 2.5V |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 2mA |
| Output Current | 1mA |
| Output Current per Channel | 10mA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 125dB |
| Quiescent Current | 500uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.7V/µs |
| Supply Current | 400uA |
| Supply Type | Dual |
| Unity Gain Bandwidth Product | 1.3MHz |
| Voltage Gain | 126.02dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices OP4177ARZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices OP4177ARZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

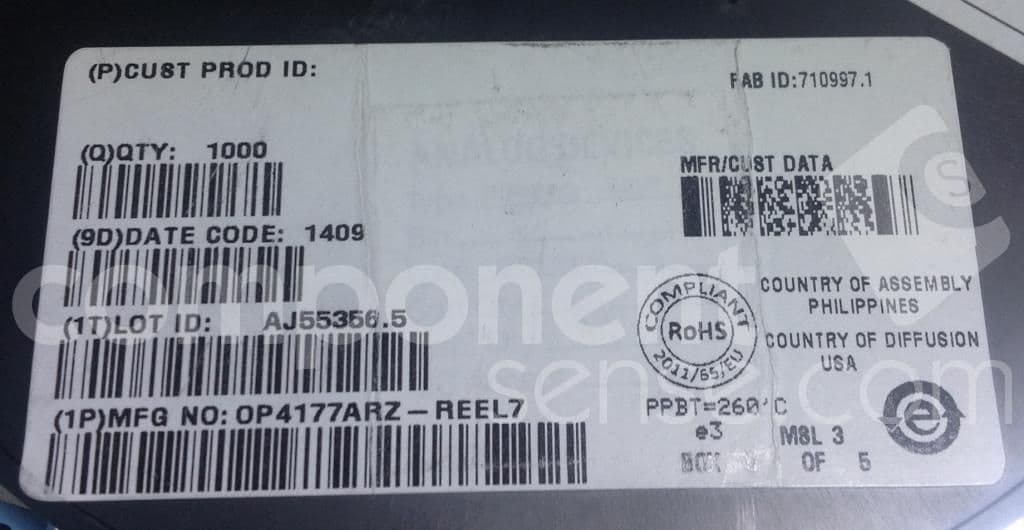

Product Images
