Quad operational amplifier featuring rail-to-rail input and output capabilities. This general-purpose amplifier offers a 4MHz bandwidth and a 4.25MHz gain bandwidth product. With a low input offset voltage of 150µV and input bias current of 80nA, it provides excellent precision. Operating from a minimum dual supply voltage of 1.5V up to a maximum of 18V, or a single supply from 3V to 36V, it delivers a 4V/µs slew rate and 10mA output current per channel. The device operates across a wide temperature range of -40°C to 125°C.
PackageR
Quick Jump:
Technical Specifications
Analog Devices OP484ES technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
4MHz
Package/Case
R
Common Mode Rejection Ratio
90dB
Dual Supply Voltage
3V
Gain Bandwidth Product
4.25MHz
Height
1.5mm
Input Bias Current
80nA
Input Offset Voltage (Vos)
150uV
Input Voltage Noise Density
3.9nV/sqrt Hz
Lead Free
Contains Lead
Length
8.75mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
5.8mA
Max Supply Voltage
36V
Min Supply Voltage
3V
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
8mA
Operating Supply Voltage
5V
Output Current per Channel
10mA
Package Quantity
56
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
90dB
Quiescent Current
2mA
Radiation Hardening
No
RoHS Compliant
No
Settling Time
4us
Slew Rate
4V/µs
Technology
BIPOLAR
Unity Gain Bandwidth Product
3.25MHz
Voltage Gain
107.6dB
Width
4mm
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices OP484ES Datasheet
Download the complete datasheet for Analog Devices OP484ES to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

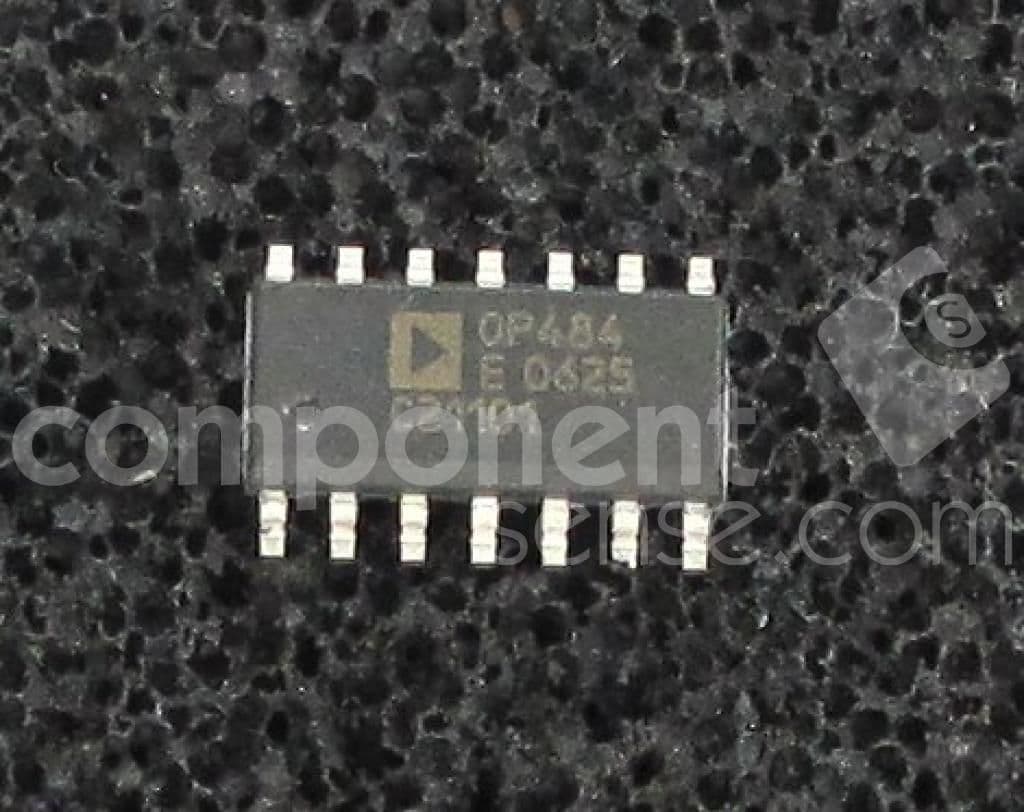

Product Images
