Quad operational amplifier featuring rail-to-rail input and output capabilities. This general-purpose amplifier offers a 4.25MHz bandwidth and a 4V/µs slew rate. It operates with dual supply voltages from 1.5V to 18V, or single supply from 3V to 36V, drawing a maximum supply current of 5.8mA. Key performance metrics include a 150µV input offset voltage, 80nA input bias current, and 3.9nV/√Hz input voltage noise density. The device boasts a 90dB common mode rejection ratio and power supply rejection ratio, with a voltage gain of 107.6dB. Packaged in a 4mm x 8.75mm x 1.5mm footprint, this RoHS compliant component operates across a -40°C to 125°C temperature range.
PackageR
Quick Jump:
Technical Specifications
Analog Devices OP484ESZ technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
4.25MHz
Package/Case
R
Common Mode Rejection Ratio
90dB
Dual Supply Voltage
9V
Gain Bandwidth Product
4.25MHz
Height
1.5mm
Input Bias Current
80nA
Input Offset Voltage (Vos)
150uV
Input Voltage Noise Density
3.9nV/sqrt Hz
Length
8.75mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
5.8mA
Max Supply Voltage
36V
Min Supply Voltage
3V
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
8mA
Operating Supply Voltage
28V
Output Current per Channel
10mA
Package Quantity
56
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
90dB
Quiescent Current
2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
4us
Slew Rate
4V/µs
Technology
BIPOLAR
Unity Gain Bandwidth Product
3.25MHz
Voltage Gain
107.6dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices OP484ESZ Datasheet
Download the complete datasheet for Analog Devices OP484ESZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

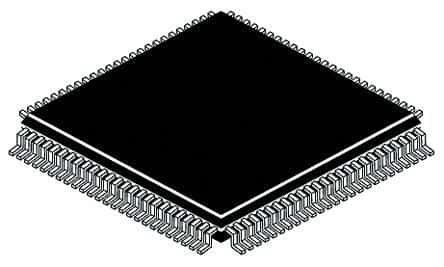

Product Images
