Quad operational amplifier featuring a 20kHz bandwidth and 1mV input offset voltage. This general-purpose amplifier operates from a minimum supply voltage of 1.6V up to 36V, with a maximum dual supply voltage of 18V. It offers a high 90dB common mode rejection ratio and a 109dB power supply rejection ratio, consuming a low 80uA maximum supply current. The amplifier is housed in a 7.6mm wide, 10.5mm long, 2.35mm high SOIC package.
PackageSOIC
Current80uA
Quick Jump:
Technical Specifications
Analog Devices OP490GSZ technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 20kHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 90dB |
| Gain Bandwidth Product | 20kHz |
| Height | 2.35mm |
| Input Bias Current | 4.2nA |
| Input Offset Voltage (Vos) | 1mV |
| Lead Free | Contains Lead |
| Length | 10.5mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 800mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 80uA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 1.6V |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 80uA |
| Operating Supply Voltage | 28V |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 109dB |
| Quiescent Current | 20uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.012V/µs |
| Supply Current | 80uA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 20kHz |
| Voltage Gain | 118.06dB |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices OP490GSZ Datasheet
Download the complete datasheet for Analog Devices OP490GSZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

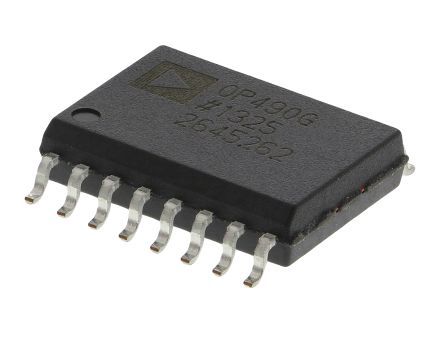

Product Images
