Analog Devices
OP495GP
IC QUAD OP-AMP, 800 uV OFFSET-MAX, 0.085 MHz BAND WIDTH, PDIP14, PLASTIC, MS-001AA, DIP-14, Operational Amplifier
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices OP495GP technical specifications.
General
Package/Case
PDIP
Common Mode Rejection Ratio
90dB
Input Bias Current
20nA
Input Offset Voltage (Vos)
300uV
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
3V
Mount
Through Hole
Nominal Supply Current
15mA
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Power Supply Rejection Ratio (PSRR)
90dB
RoHS Compliant
No
Slew Rate
0.03V/µs
Technology
BICMOS
Unity Gain Bandwidth Product
75kHz
Voltage Gain
140dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices OP495GP Datasheet
Download the complete datasheet for Analog Devices OP495GP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

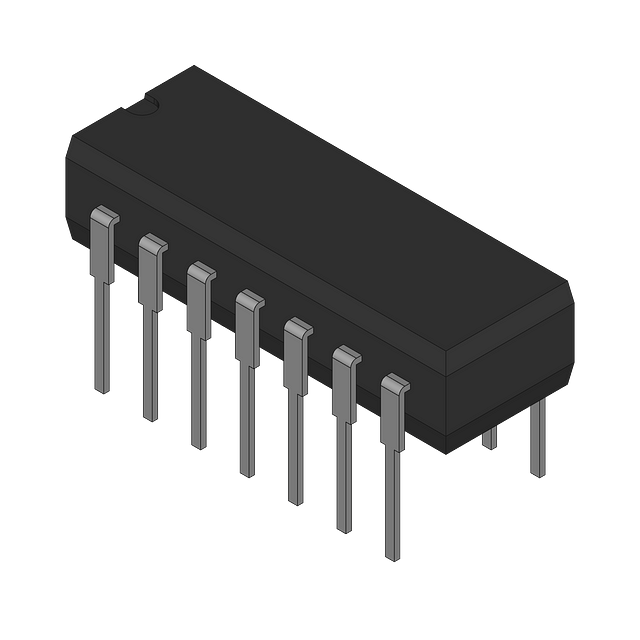

Product Images
