Quad operational amplifier featuring picoampere input current, 75µV input offset voltage, and 17nV/√Hz input voltage noise density. This general-purpose amplifier offers a 500kHz bandwidth and 135dB common-mode rejection ratio. Designed for dual supply operation from ±2V to ±10V, it provides 25mA output current per channel. The component is housed in a 7.6mm x 10.5mm x 2.35mm SOIC package.
PackageSOIC
Current2mA
Quick Jump:
Technical Specifications
Analog Devices OP497GSZ technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 500kHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 135dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 500kHz |
| Height | 2.35mm |
| Input Bias Current | 60pA |
| Input Capacitance | 3pF |
| Input Offset Voltage (Vos) | 75uV |
| Input Voltage Noise Density | 17nV/sqrt Hz |
| Lead Free | Contains Lead |
| Length | 10.5mm |
| Max Dual Supply Voltage | 20V |
| Min Dual Supply Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 20V |
| Min Supply Voltage | 2V |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 2.5mA |
| Output Current per Channel | 25mA |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 135dB |
| Quiescent Current | 625uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.15V/µs |
| Supply Current | 2mA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 500kHz |
| Voltage Gain | 132.04dB |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices OP497GSZ Datasheet
Download the complete datasheet for Analog Devices OP497GSZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

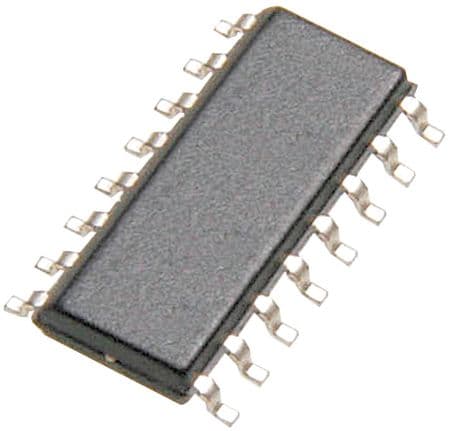

Product Images
