Analog Devices
REF01CJ
Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, MBCY8
PackageTO-99-8
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices REF01CJ technical specifications.
General
| Package/Case | TO-99-8 |
| Lead Free | Contains Lead |
| Max Input Voltage | 36V |
| Min Input Voltage | 12V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 8mA |
| Max Output Voltage | 10V |
| Min Output Voltage | 10V |
| Max Supply Current | 1mA |
| Mount | Through Hole |
| Nominal Supply Current | 1.4mA |
| Operating Supply Current | 1.4mA |
| Output Current | 8mA |
| Output Type | Fixed |
| Output Voltage | 10V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Quiescent Current | 1.6mA |
| Radiation Hardening | No |
| Reference Type | Series |
| RoHS Compliant | No |
| Tolerance | 1% |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Analog Devices REF01CJ Datasheet
Download the complete datasheet for Analog Devices REF01CJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

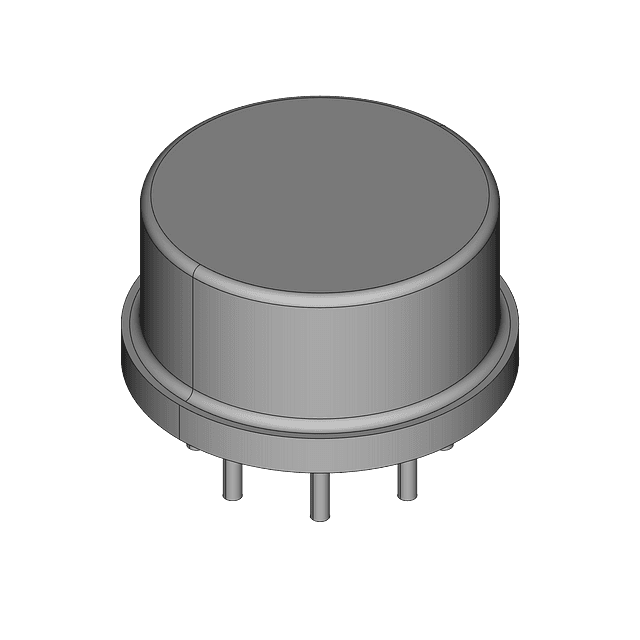

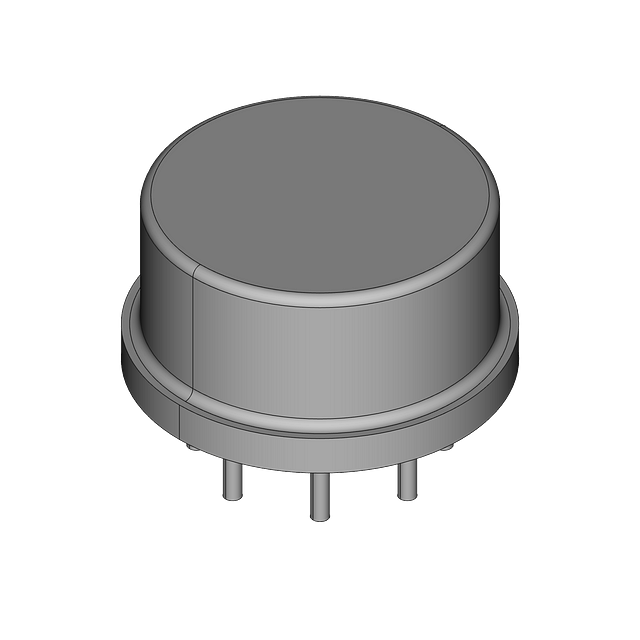

Product Images
