3.3V precision micropower voltage reference IC, featuring low dropout operation. This series reference offers a stable 3.3V output with a maximum output current of 30mA. Operating with a low quiescent current of 45uA, it supports input voltages from 3.5V to 18V. The component is housed in an R package, measuring 5mm in length, 4mm in width, and 1.5mm in height, with an operating temperature range of -40°C to 85°C.
PackageR
Current Rating45uA
Quick Jump:
Technical Specifications
Analog Devices REF196GSZ technical specifications.
General
Package/Case
R
Current Rating
45uA
Height
1.5mm
Lead Free
Contains Lead
Length
5mm
Max Input Voltage
18V
Min Input Voltage
3.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
30mA
Max Output Voltage
3.3V
Min Output Voltage
3.29V
Nominal Supply Current
45uA
Number of Channels
1
Operating Supply Current
45uA
Output Current
30mA
Output Voltage
3.3V
Package Quantity
98
Packaging
Rail/Tube
Quiescent Current
15uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series
Reference Voltage
3.3V
RoHS Compliant
Yes
Series
REF19
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices REF196GSZ Datasheet
Download the complete datasheet for Analog Devices REF196GSZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

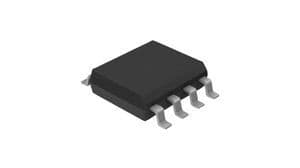

Product Images
