Four-channel sample and hold amplifier featuring a 1µs settling time and 4V/µs slew rate. This integrated circuit offers an 8kHz bandwidth and operates with a dual supply voltage of 5V, supporting a wide operating supply voltage range from -300mV to 17V. Designed for surface mounting, it comes in a 16-pin SOIC package with dimensions of 10mm length, 4mm width, and 1.5mm height. Key electrical specifications include 500nA input bias current and 2.5mV input offset voltage, with an operating supply current of 4mA and 1.2mA output current per channel.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices SMP04ESZ technical specifications.
General
Bandwidth
8kHz
Package/Case
SOIC
Dual Supply Voltage
5V
Height
1.5mm
Input Bias Current
500nA
Input Offset Voltage (Vos)
2.5mV
Lead Free
Contains Lead
Length
10mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
17V
Min Supply Voltage
-300mV
Mount
Surface Mount
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Operating Supply Current
4mA
Operating Supply Voltage
12V
Output Current per Channel
1.2mA
Package Quantity
48
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
1us
Slew Rate
4V/µs
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices SMP04ESZ Datasheet
Download the complete datasheet for Analog Devices SMP04ESZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

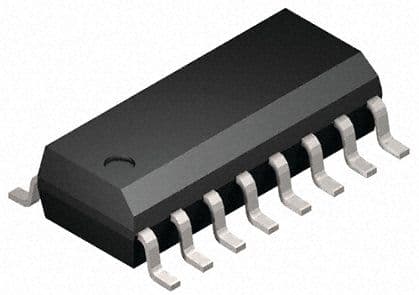

Product Images
