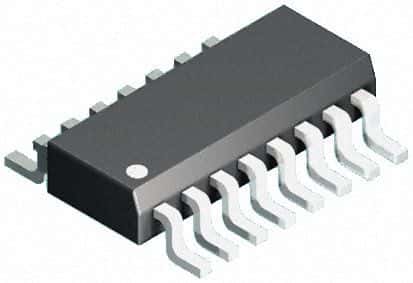

Eight-channel sample and hold amplifier IC featuring a 7µs acquisition time. Surface mountable in an SOIC package, it operates with a dual supply voltage of 5V and a typical operating supply voltage of 12V, with a maximum of 17V. Key specifications include a 4V/µs slew rate, 1µs settling time, 500nA input bias current, and 2.5mV input offset voltage. This RoHS compliant component offers 1.2mA output current per channel and is supplied in a rail/tube package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices SMP08FSZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Dual Supply Voltage | 5V |
| Height | 1.5mm |
| Input Bias Current | 500nA |
| Input Offset Voltage (Vos) | 2.5mV |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 17V |
| Min Supply Voltage | -300mV |
| Mount | Surface Mount |
| Number of Amplifiers | 8 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Operating Supply Current | 6mA |
| Operating Supply Voltage | 12V |
| Output Current per Channel | 1.2mA |
| Package Quantity | 48 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Settling Time | 1us |
| Slew Rate | 4V/µs |
| Termination | SMD/SMT |
| Width | 4mm |
| RoHS | Compliant |
