2W Filterless Class-D Stereo Audio Amplifier, delivering 2.4W maximum output power. Features 85% efficiency and a 102dB signal-to-noise ratio. Operates from a 2.5V to 5V single supply voltage, with a typical operating voltage of 3V and 6.5mA operating supply current. Offers 60dB common mode rejection ratio and 85dB power supply rejection ratio. This surface mount component is available in LFCSP EP packaging, on tape and reel.
PackageLFCSP EP
Current7mA
MountingSurface Mount
Power2W
Quick Jump:
Technical Specifications
Analog Devices SSM2304CPZ-REEL technical specifications.
General
| Package/Case | LFCSP EP |
| Common Mode Rejection Ratio | 60dB |
| Efficiency | 85% |
| Input Type | DIFFERENTIAL |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 2.4W |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Operating Supply Current | 6.5mA |
| Operating Supply Voltage | 3V |
| Output Power | 2W |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 85dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SSM2304 |
| Signal to Noise Ratio (SNR) | 102dB |
| Supply Current | 7mA |
| Supply Type | Single |
| Voltage Gain | 18dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices SSM2304CPZ-REEL Datasheet
Download the complete datasheet for Analog Devices SSM2304CPZ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

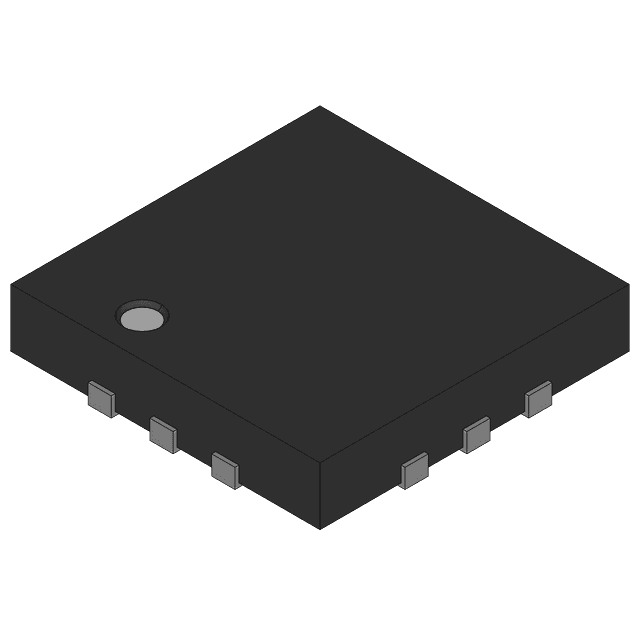

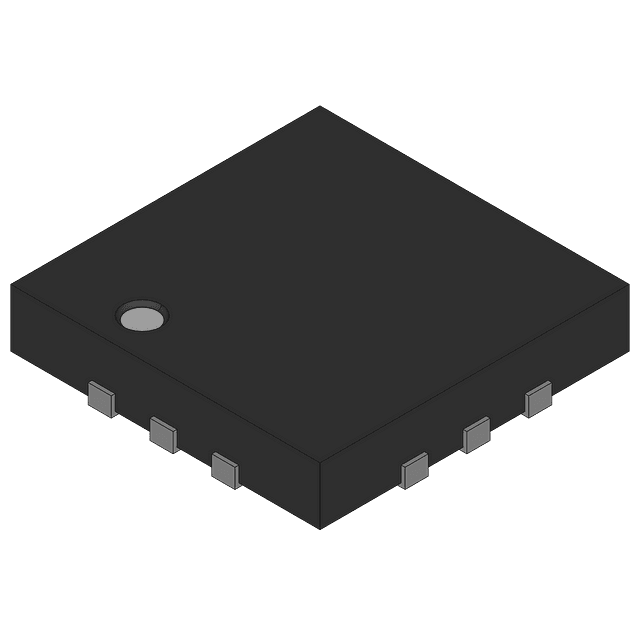

Product Images
