2W Filterless Class-D Stereo Audio Amplifier, a 2-channel surface mount IC, delivers 2W output power with 85% efficiency. Featuring differential input, it operates from a 2.5V to 5V single supply, with a typical 3V operating voltage and 6.5mA supply current. Boasting a 102dB Signal to Noise Ratio (SNR) and 85dB Power Supply Rejection Ratio (PSRR), this RoHS compliant component is packaged in LFCSP EP for tape and reel distribution.
PackageLFCSP EP
Current7mA
MountingSurface Mount
Power2W
Quick Jump:
Technical Specifications
Analog Devices SSM2304CPZ-REEL7 technical specifications.
General
Package/Case
LFCSP EP
Common Mode Rejection Ratio
60dB
Efficiency
85%
Input Type
DIFFERENTIAL
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
2.4W
Max Supply Voltage
5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Channels
2
Operating Supply Current
6.5mA
Operating Supply Voltage
3V
Output Power
2W
Package Quantity
1500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
85dB
Radiation Hardening
No
RoHS Compliant
Yes
Signal to Noise Ratio (SNR)
102dB
Supply Current
7mA
Supply Type
Single
Voltage Gain
18dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices SSM2304CPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices SSM2304CPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

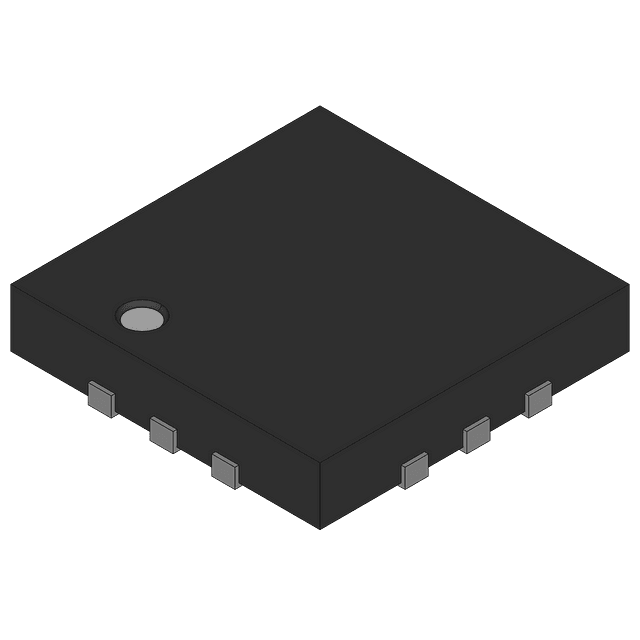

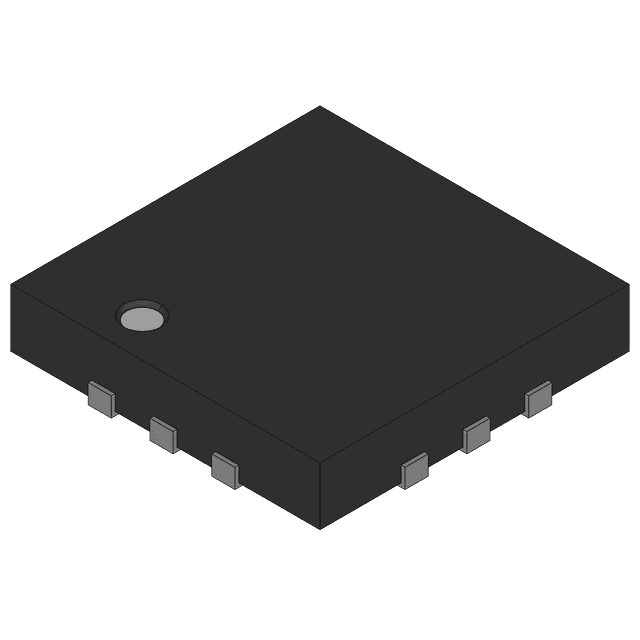

Product Images
