PackageLFCSP EP
Current6.5mA
MountingSurface Mount
Power2W
Quick Jump:
Technical Specifications
Analog Devices SSM2306CPZ-REEL7 technical specifications.
General
Package/Case
LFCSP EP
Efficiency
87%
Lead Free
Contains Lead
Load Impedance
4R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
2.4W
Max Supply Voltage
5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Channels
2
Operating Supply Current
5.7mA
Operating Supply Voltage
3V
Output Power
2W
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
85dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Signal to Noise Ratio (SNR)
96dB
Supply Current
6.5mA
Voltage Gain
18dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices SSM2306CPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices SSM2306CPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

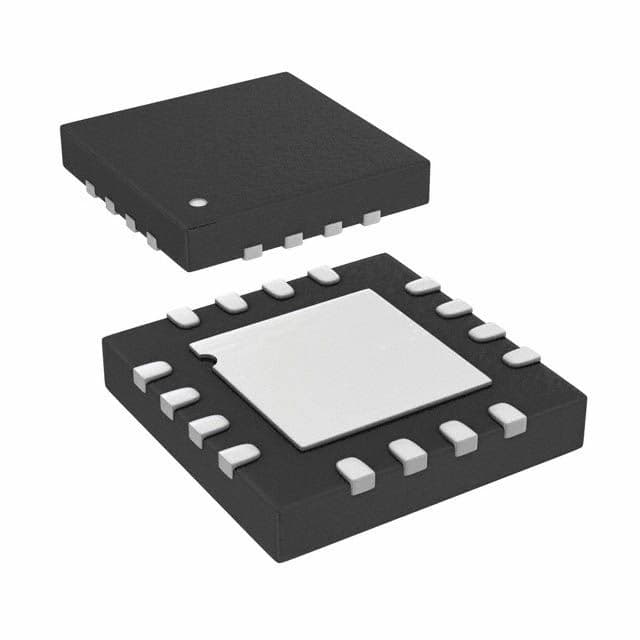

Product Images
