Mono 3W Class-D audio amplifier featuring filterless operation and high efficiency up to 93%. This surface mount BGA package component offers a 6dB voltage gain, 3 Ohm load impedance, and delivers 3W output power, with a maximum of 4.28W. It operates from a 2.5V to 5.5V single supply, drawing 2.8mA typical supply current. Key performance metrics include a 103dB signal-to-noise ratio, 85dB power supply rejection ratio, and 55dB common mode rejection ratio.
PackageBGA
Current3.3mA
MountingSurface Mount
Power3W
Quick Jump:
Technical Specifications
Analog Devices SSM2315CBZ-REEL7 technical specifications.
General
Package/Case
BGA
Common Mode Rejection Ratio
55dB
Efficiency
93%
Gain
6dB
Input Type
DIFFERENTIAL
Lead Free
Contains Lead
Load Impedance
3R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
4.28W
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Channels
1
Operating Supply Current
2.8mA
Output Power
3W
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
85dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Signal to Noise Ratio (SNR)
103dB
Supply Current
3.3mA
Supply Type
Single
Voltage Gain
6dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices SSM2315CBZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices SSM2315CBZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

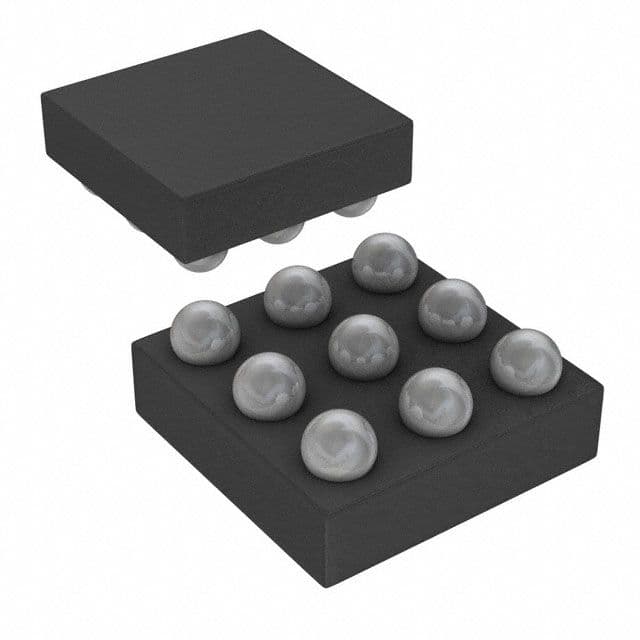

Product Images
