Mono 3W Class-D audio amplifier featuring filterless operation and 93% efficiency. Delivers up to 3.17W output power into a 3Ω load, with a wide operating voltage range of 2.5V to 5.5V. Offers 100dB signal-to-noise ratio and 80dB power supply rejection ratio. Includes I²C interface for control and operates from -40°C to 85°C. Surface mount package, supplied on tape and reel.
Current3.1mA
MountingSurface Mount
Power3W
Quick Jump:
Technical Specifications
Analog Devices SSM2375CBZ-REEL7 technical specifications.
General
Common Mode Rejection Ratio
55dB
Efficiency
93%
Features
I²C
Input Type
DIFFERENTIAL
Lead Free
Contains Lead
Load Impedance
3R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
3.17W
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Channels
1
Operating Supply Current
2.7mA
Output Power
3W
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Signal to Noise Ratio (SNR)
100dB
Supply Current
3.1mA
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices SSM2375CBZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices SSM2375CBZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

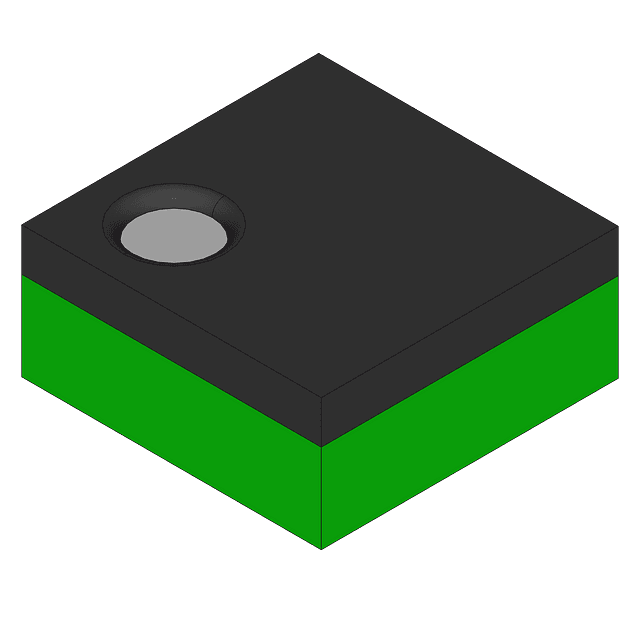

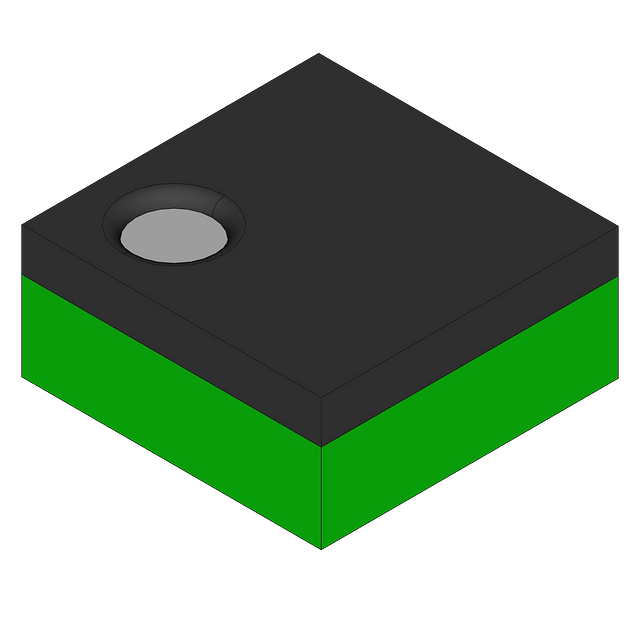

Product Images
