24-bit, 96 kS/s audio codec featuring a 90dB signal-to-noise ratio. This general-purpose interface IC supports I2C and serial communication, with two analog-to-digital and two digital-to-analog converters. Operating from a 1.5V to 3.6V supply, it is housed in an LFCSP EP package for surface mounting. The component functions within a -40°C to 85°C temperature range and is supplied on tape and reel.
PackageLFCSP EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices SSM2603CPZ-REEL7 technical specifications.
General
| Package/Case | LFCSP EP |
| Interface | I2C, Serial |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of D/A Converters | 2 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 96KS/s |
| Signal to Noise Ratio (SNR) | 90dB |
| Type | General Purpose |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices SSM2603CPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices SSM2603CPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

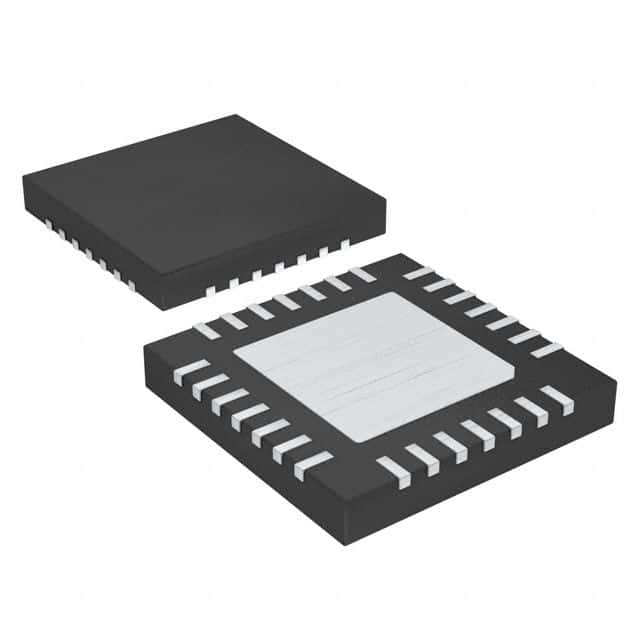

Product Images
