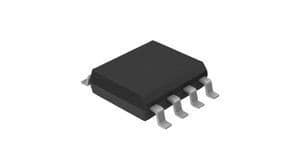

Programmable temperature controller featuring an analog and TTL output. Operates within a wide temperature range of -55°C to 85°C, powered by a supply voltage from 4.5V to 13.2V. This surface-mount device (SMD/SMT) consumes a low operating supply current of 500µA and offers an output current of 20mA. The component is RoHS compliant and comes in a compact R package measuring 5mm in length, 4mm in width, and 1.5mm in height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices TMP01ESZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | R |
| Height | 1.5mm |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 50mA |
| Max Supply Voltage | 13.2V |
| Min Supply Voltage | 4.5V |
| Operating Supply Current | 500uA |
| Output Current | 20mA |
| Output Type | Analog, TTL |
| Package Quantity | 98 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 450uA |
| Termination | SMD/SMT |
| Width | 4mm |
| RoHS | Compliant |
