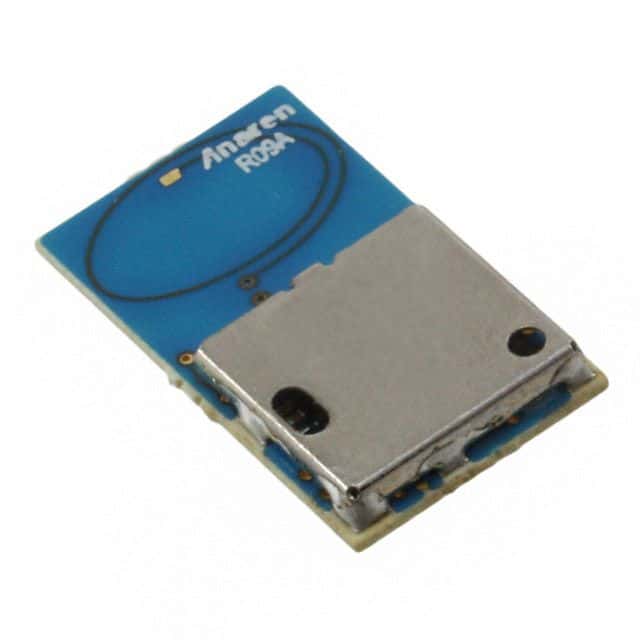

The Anaren A1101R09A00GM is a surface mount RF transceiver operating at 928MHz with a maximum data rate of 500Kbps. It can supply a maximum output power of 10dBm and has a sensitivity of -112dBm. The device is rated for operation between -40°C and 85°C and can be supplied with a voltage between 1.8V and 3.6V. It draws a maximum supply current of 15mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Anaren A1101R09A00GM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Anaren A1101R09A00GM technical specifications.
| Package/Case | SMD/SMT |
| Current - Receiving | 15mA |
| Data Rate | 500Kbps |
| Depth | 9mm |
| Frequency | 928MHz |
| Interface | SPI |
| Length | 16mm |
| Max Frequency | 928MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Output Power (dBm) | 10dBm |
| Package Quantity | 30 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Sensitivity | -112dBm |
| Series | AIR™ |
| Supply Current | 15mA |
| RoHS | Compliant |
