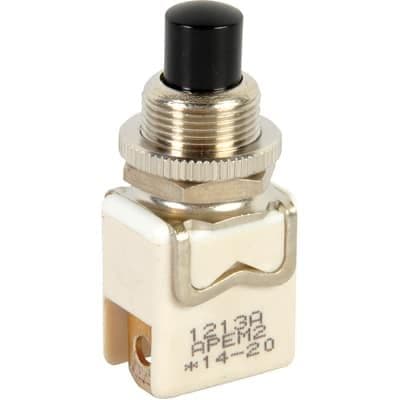

This 24V DC rated panel mount switch features a silver contact material and a maximum operating temperature of 55°C. It has a current rating of 8A and an electrical life of 10000 cycles. The switch is available in a package quantity of 40 and is packaged in bulk. It is compliant with RoHS regulations and is not Reach SVHC compliant. The switch is a single pole, single throw (SPST) type with an off-mom switch function.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Apem 1213A2ULCSA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Apem 1213A2ULCSA technical specifications.
| Approvals | UL, CSA |
| Package/Case | 125 |
| Contact Material | Silver |
| Current Rating | 8A |
| Electrical Life | 10000Cycles |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -20°C |
| Mount | Panel, Bushing |
| Package Quantity | 40 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 1200 |
| Switch Function | Off-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
Download the complete datasheet for Apem 1213A2ULCSA to view detailed technical specifications.
