Technical Specifications
Apem 1233A2X209UL technical specifications.
General
| Actuator Diameter | 0.315inch |
| Package/Case | 315 |
| Contact Plating | Silver |
| Current Rating | 8A |
| Electrical Life | 10000Cycles |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -20°C |
| Mount | Panel, Bushing |
| Package Quantity | 40 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 1200 |
| Switch Function | Off-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 24V |
Compliance
| RoHS | Compliant |
Datasheet
Apem 1233A2X209UL Datasheet
Download the complete datasheet for Apem 1233A2X209UL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

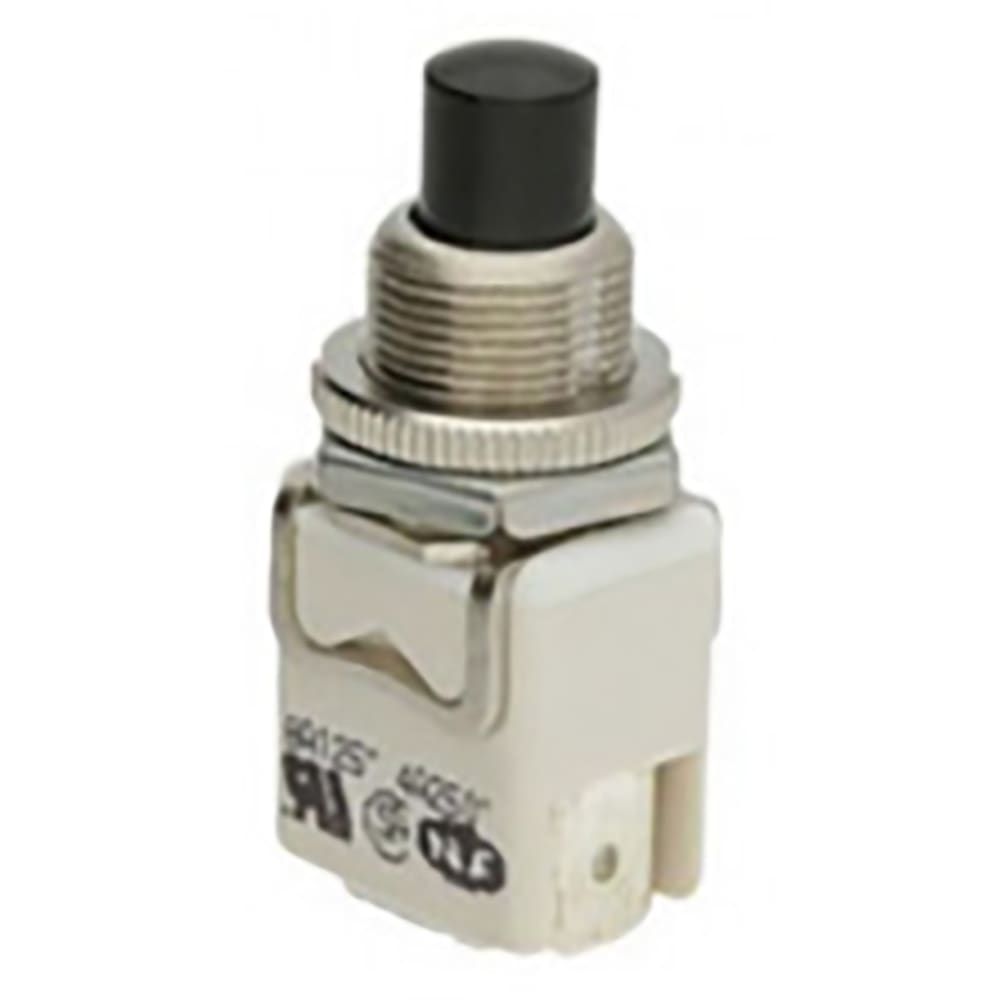

Product Images
