MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
Apem 5236WADB technical specifications.
General
Actuator Length
13.5mm
Actuator Material
Brass
Actuator Type
Standard Round
Contact Material
Silver, Gold
Contact Plating
Gold
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated, Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mechanical Life
100000Cycles
Mount
Through Hole, Brackets
Orientation
Right Angle
Package Quantity
50
Packaging
Bulk
Series
5000
Switch Function
On-On
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Apem 5236WADB Datasheet
Download the complete datasheet for Apem 5236WADB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

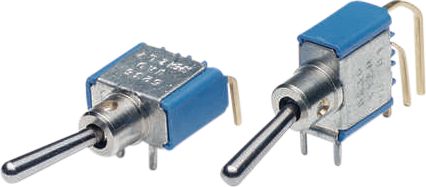

Product Images
