Technical Specifications
Apem 5636AB9 technical specifications.
General
Actuator Length
11.4mm
Actuator Material
Nylon, Polyamide
Contact Material
Silver
Contact Plating
Silver
Current Rating
4A
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated, Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Package Quantity
50
Packaging
Bulk
RoHS Compliant
Yes
Series
5000
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Apem 5636AB9 Datasheet
Download the complete datasheet for Apem 5636AB9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

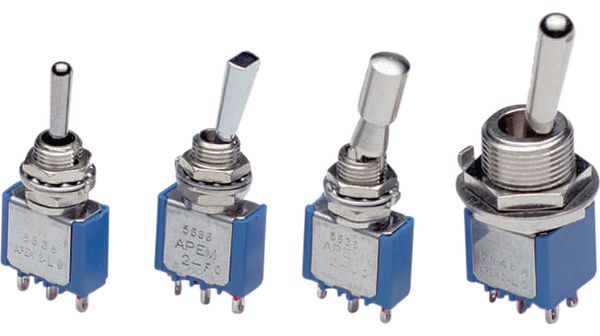

Product Images
