Apem
5669AB
Switch Toggle ON OFF ON 4PDT Round Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads
MountingPanel
Quick Jump:
Technical Specifications
Apem 5669AB technical specifications.
General
Actuator Length
10.5mm
Actuator Material
Brass
Actuator Type
Standard Round
Contact Material
Silver
Electrical Life
30000Cycles
Illumination Type
Non-Illuminated, Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Package Quantity
25
Packaging
Bulk
RoHS Compliant
Yes
Series
5000
Switch Function
On-Off-On
Termination
Solder
Throw Configuration
4PDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Apem 5669AB Datasheet
Download the complete datasheet for Apem 5669AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

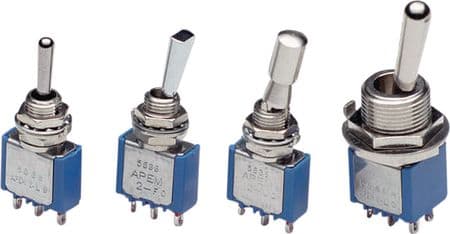

Product Images
