Technical Specifications
Apem A0152B technical specifications.
General
| Contact Plating | Gold, Silver |
| Contact Type | 2 change-overs |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Length | 18mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -20°C |
| Mount | Panel, Front |
| Number of Poles | 2 |
| Package Quantity | 50 |
| Ratings | IP65 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switch Type | Keylock |
| Terminal Length | 8.4mm |
| Termination | Solder |
| Throw Configuration | DPDT |
Compliance
| RoHS | Not Compliant |
Datasheet
Apem A0152B Datasheet
Download the complete datasheet for Apem A0152B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

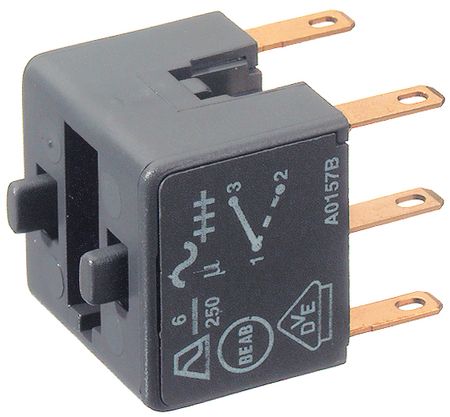

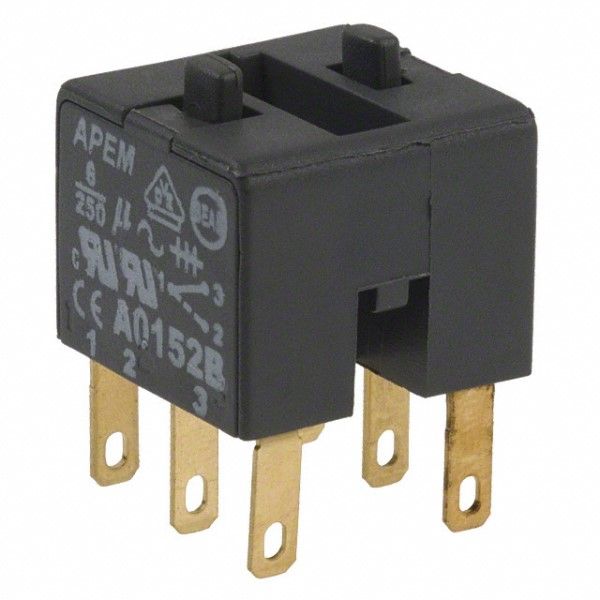

Product Images
