The A0214X is an electromechanical pushbutton switch from Apem with a current rating of 16A and contact current rating of 25mA. It features a silver-plated contact and is rated for use in environments with an operating temperature range of -20°C to 85°C. The switch has a voltage rating of 380V AC and meets the IP65 rating for dust and water resistance. It is available in a package quantity of 20 and can be terminated with a quick connect.
Current Rating16A
Quick Jump:
Technical Specifications
Apem A0214X technical specifications.
General
| Actuator Type | Pushbutton |
| Contact Current Rating | 25mA |
| Contact Plating | Silver |
| Current Rating | 16A |
| Illumination Color | Multiple |
| Illumination Type | Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Package Quantity | 20 |
| Ratings | IP65 |
| Series | A02 |
| Termination | Quick Connect |
| Voltage Rating (AC) | 380V |
Compliance
| RoHS | Compliant |
Datasheet
Apem A0214X Datasheet
Download the complete datasheet for Apem A0214X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

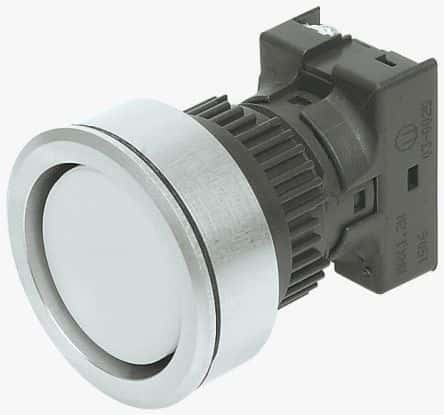

Product Images
