Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Apem ADTSM62RVTR technical specifications.
General
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Plating
Silver
Current Rating
50mA
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Operating Force
260gf
Package Quantity
900
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
ADTS
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Apem ADTSM62RVTR Datasheet
Download the complete datasheet for Apem ADTSM62RVTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

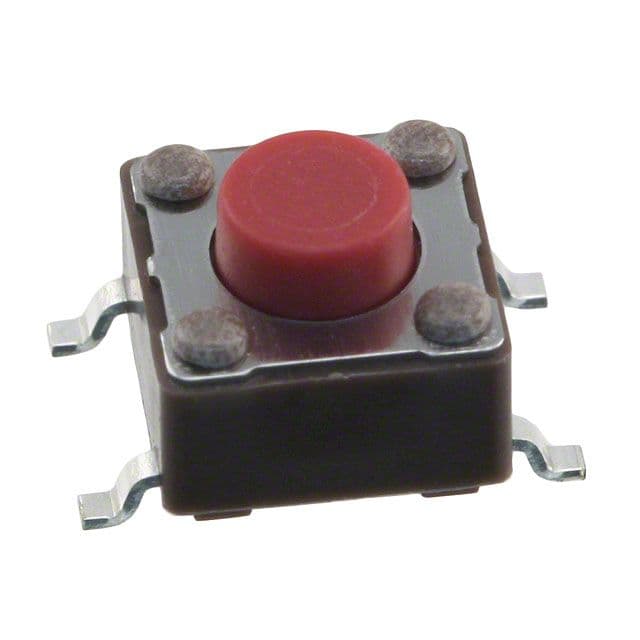

Product Images
