Technical Specifications
Apem DP06 technical specifications.
General
| Actuator Type | PIANO |
| Package/Case | DIP |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 50mA |
| Height | 10.2mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Positions | 6 |
| Package Quantity | 25 |
| Series | DP |
| Terminal Pitch | 2.54mm |
| Termination | Solder |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | No |
| Width | 10.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Apem DP06 Datasheet
Download the complete datasheet for Apem DP06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

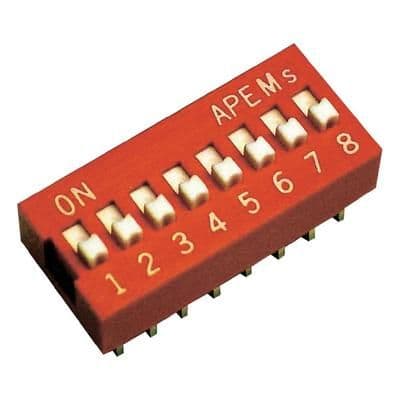

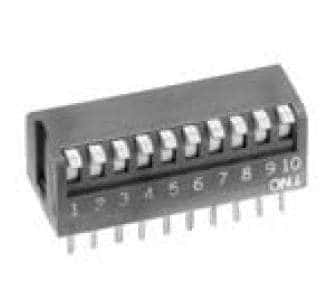

Product Images
