Technical Specifications
Apem IAR3F1100 technical specifications.
General
| Actuator Type | Round, Button |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 2A |
| Electrical Life | 1000000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -20°C |
| Mount | Panel, Front |
| Number of Poles | 1 |
| Orientation | Vertical |
| Package Quantity | 25 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | IA |
| Switch Function | Off-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
Compliance
| RoHS | Compliant |
Datasheet
Apem IAR3F1100 Datasheet
Download the complete datasheet for Apem IAR3F1100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

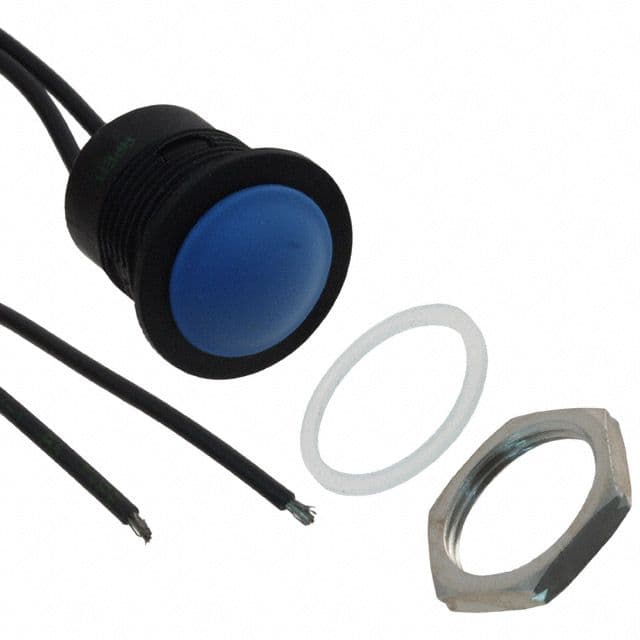

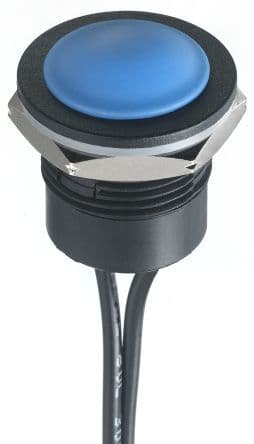

Product Images
