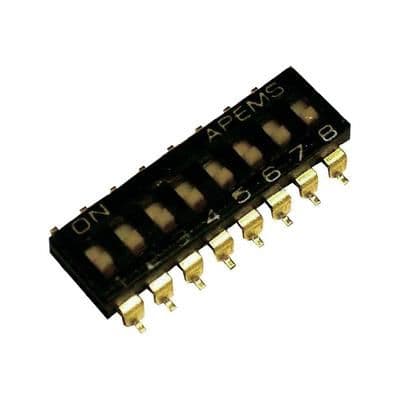

This 8-position SPST slide actuator switch from Apem features a thermoplastic body and bronze contacts with gold plating. It has a current rating of 25mA and is rated for 24V DC. The switch is designed for surface mount applications and has a maximum operating temperature of 70°C. It is also RoHS compliant and washable.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Apem IKH0803000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 25mA |
| Electrical Life | 1000Cycles |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Positions | 8 |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | IKH |
| Terminal Pitch | 1.27mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | Yes |
| RoHS | Compliant |
Download the complete datasheet for Apem IKH0803000 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
