SPST latching pushbutton switch with a round, black polyamide plunger, 2mm actuator length. Features a 4A/72VDC rating, 5A contact current, and gold/silver contacts with gold plating. Operates within a -40°C to 85°C temperature range, offering 200,000 electrical cycles and UL94 V-0 flammability. Panel-mounted with solder lug termination, this IP67 rated, waterproof, and dust-tight switch is RoHS compliant.
Package125
Current Rating2A
MountingPanel, Front
Quick Jump:
Technical Specifications
Apem IPR1SAD2 technical specifications.
General
| Actuator Color | Black |
| Actuator Length | 2mm |
| Actuator Material | Polyamide |
| Actuator Type | Round, Button |
| Package/Case | 125 |
| Color | Black |
| Contact Current Rating | 5A |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Current Rating | 2A |
| Electrical Life | 200000Cycles |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Panel, Front |
| Number of Poles | 1 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | IP |
| Switch Function | Off-On |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Apem IPR1SAD2 Datasheet
Download the complete datasheet for Apem IPR1SAD2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

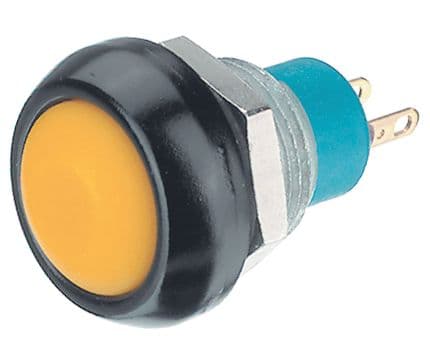

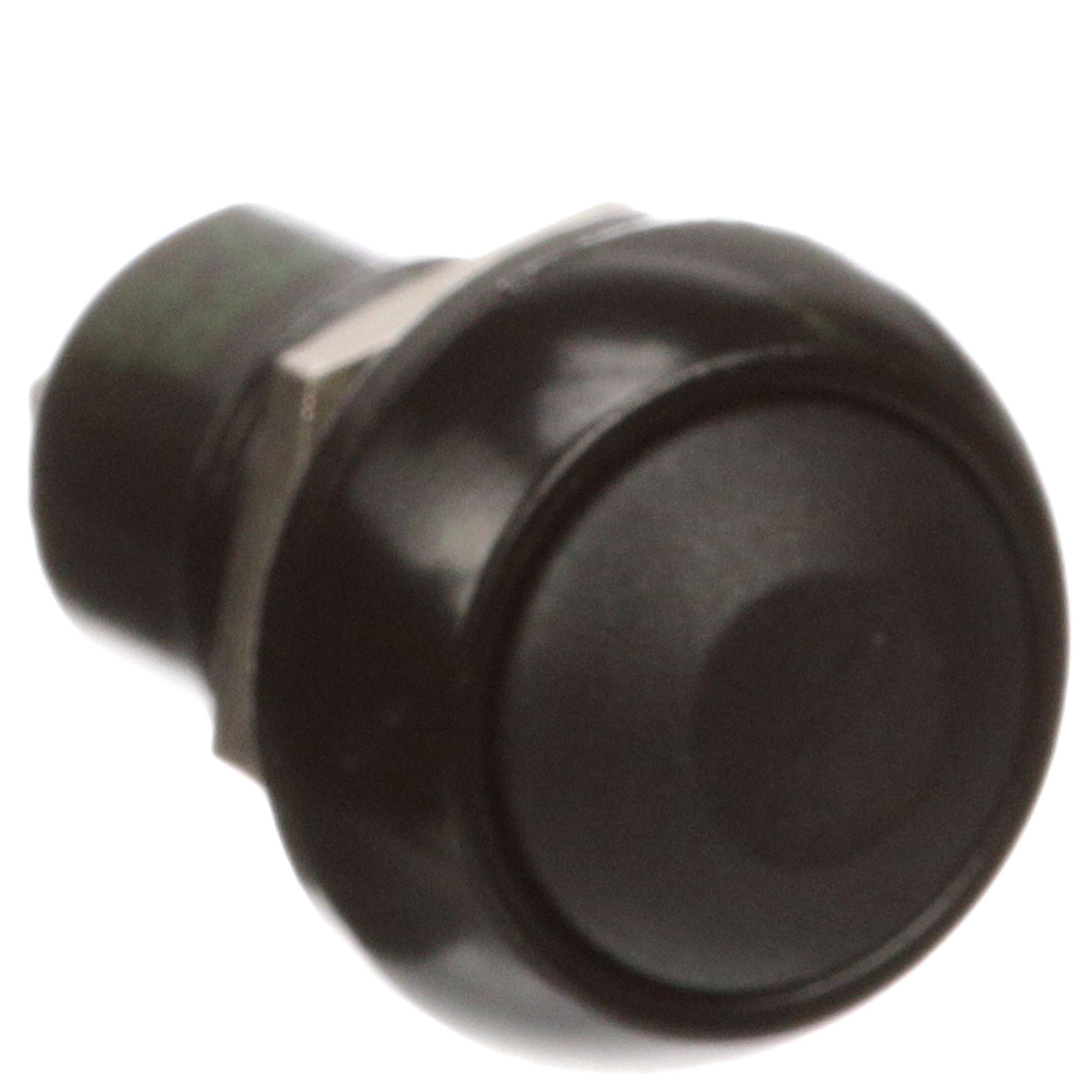

Product Images
