Illuminated pushbutton switch, SPST, Off-On, latched function. Features a black polyamide round button actuator with 2mm length. Gold-plated silver contacts offer 2A current rating and 24VDC/125VAC voltage rating. IP67, waterproof, and dust-tight construction with LED illumination. Solder lug terminals for panel mounting.
Package125
Current Rating2A
MountingPanel, Front
Quick Jump:
Technical Specifications
Apem IPR1SAD2L0G technical specifications.
General
Actuator Color
Black
Actuator Length
2mm
Actuator Material
Polyamide
Actuator Type
Round, Button
Package/Case
125
Contact Material
Gold, Silver
Contact Plating
Gold
Current Rating
2A
Electrical Life
200000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Green
Illumination Type
LED
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
24V
Mount
Panel, Front
Number of Poles
1
Orientation
Straight
Package Quantity
25
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
IP
Switch Function
Off-On
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
125V
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Apem IPR1SAD2L0G Datasheet
Download the complete datasheet for Apem IPR1SAD2L0G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

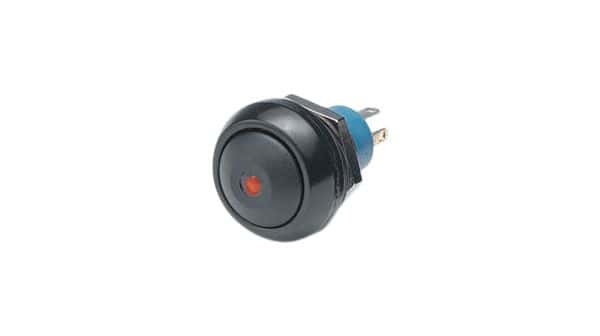

Product Images
