Illuminated pushbutton switch featuring a SPST-NO (Single Pole Single Throw, Normally Open) contact configuration. Rated for 5A at 250VAC and 500mA at 48VDC, with a contact material of gold-plated silver. Offers a mechanical life of 1,000,000 cycles and an electrical life of 500,000 cycles. Designed for panel mounting with straight wire lead termination, it boasts IP67, waterproof, and dust-tight ratings. The red polyamide actuator is round and measures 2mm in length, operating within a temperature range of -40°C to 125°C.
Current Rating500mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Apem IPR3FAD6 technical specifications.
General
| Actuator Color | Red |
| Actuator Length | 2mm |
| Actuator Material | Polyamide |
| Actuator Type | Round, Button |
| Color | Red |
| Contact Current Rating | 5A |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Electrical Life | 500000Cycles |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1000000Cycles |
| Mount | Panel, Front |
| Number of Poles | 1 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| Series | IP |
| Switch Function | Off-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 48V |
Compliance
| RoHS | Compliant |
Datasheet
Apem IPR3FAD6 Datasheet
Download the complete datasheet for Apem IPR3FAD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

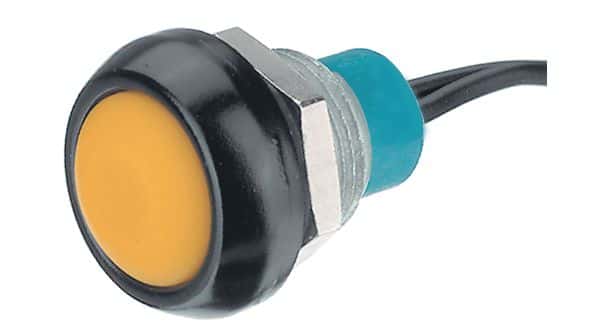

Product Images
