Illuminated pushbutton switch featuring a momentary, SPST contact configuration with a 5A current rating at 48VAC/24VDC and a 250VAC rating. This panel-mount component boasts a black, round polyamide plunger with a 2mm actuator length and solder lug termination. Rated IP67 for waterproof and dust-tight performance, it offers a robust electrical life of 500,000 cycles and a mechanical life of 1,000,000 cycles, operating within a -40°C to 125°C temperature range.
Current Rating500mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Apem IPR3SAD2 technical specifications.
General
Actuator Color
Black
Actuator Length
2mm
Actuator Material
Polyamide
Actuator Type
Round, Button
Color
Black
Contact Current Rating
5A
Contact Material
Gold, Silver
Contact Plating
Gold
Contact Type
1 maker
Current Rating
500mA
Electrical Life
500000Cycles
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Max Operating Temperature
125°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
24V
Mount
Panel, Front
Number of Poles
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
Series
IP
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
250V
DC Rated Voltage
48V
Compliance
RoHS
Compliant
Datasheet
Apem IPR3SAD2 Datasheet
Download the complete datasheet for Apem IPR3SAD2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

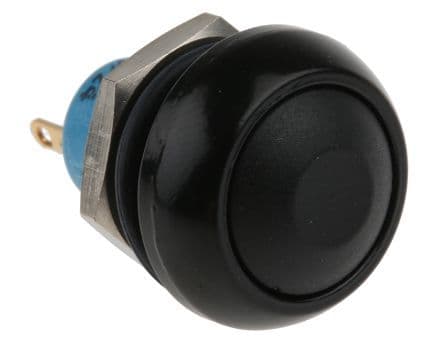

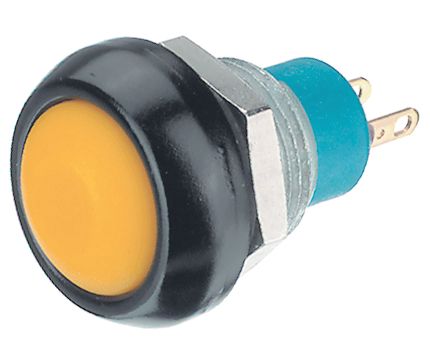

Product Images
