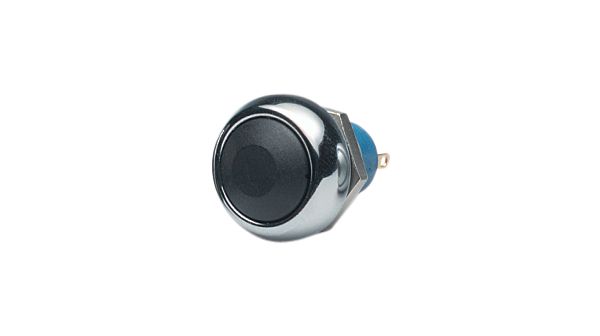

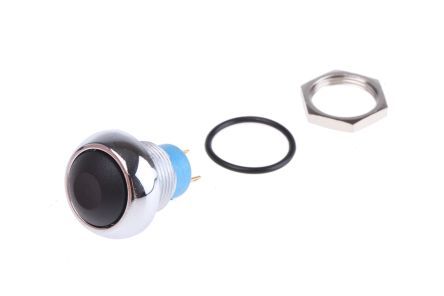

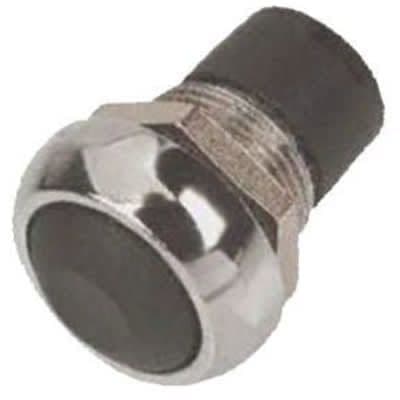

The IPR3SAD2101 is a waterproof SPST panel mount pushbutton switch from Apem. It features a round button with a chrome finish and gold/silver contacts. The switch has a high contact current rating of 5A and can operate in temperatures ranging from -40°C to 125°C. It is rated for 500,000 electrical cycles and meets IP67 and RoHS compliance standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Apem IPR3SAD2101 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Apem IPR3SAD2101 technical specifications.
| Actuator Type | Round, Button |
| Color | Chrome |
| Contact Current Rating | 5A |
| Contact Material | Gold, Silver |
| Electrical Life | 500000Cycles |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Front |
| Package Quantity | 50 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | IP |
| Switch Function | Off-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 48V |
| DC Rated Voltage | 48V |
| RoHS | Compliant |
