SPST momentary-tactile keypad switch with a 12VDC, 50mA rating. Features a thermoplastic actuator with a 1.4mm length and silver-plated bronze/stainless steel contacts. Designed for through-hole mounting with straight PC pin termination, offering 100,000 electrical and mechanical cycles. Operating force is 1.86N (160gf) with a 0.25mm switch travel.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Apem MJTP1230A technical specifications.
General
Actuator Color
Black
Actuator Length
1.4mm
Actuator Material
Thermoplastic
Actuator Type
Standard
Color
Black
Contact Material
Bronze, Stainless Steel
Contact Plating
Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated, Illuminated
Max Operating Temperature
70°C
Max Voltage Rating (DC)
12V
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Force
160gf
Orientation
Straight
Package Quantity
2000
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MJTP
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Apem MJTP1230A Datasheet
Download the complete datasheet for Apem MJTP1230A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

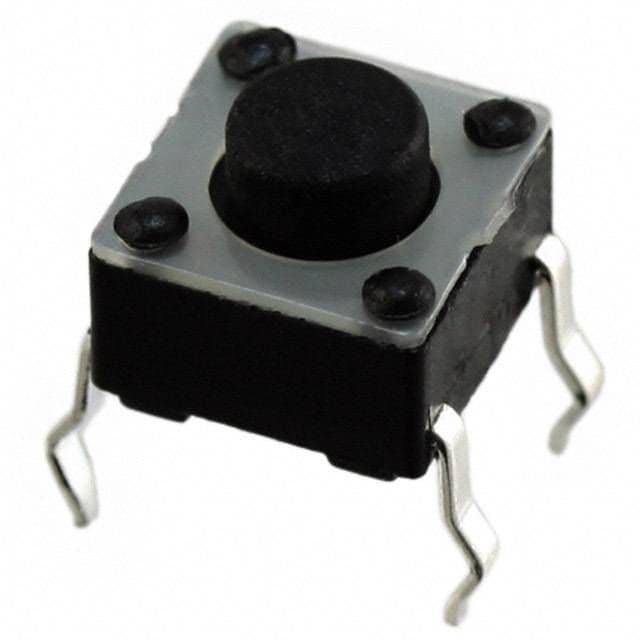

Product Images
