16-position rotary coded switch featuring a segment wheel actuator for hexadecimal output. This through-hole, straight-mount component offers 1 pole, 16 throw configurations (SP16T), and a latched on-off function. Rated for 0.4A and 24VDC, it utilizes gold/nickel plated bronze contacts and a thermoplastic body with a polyamide actuator. With a 22.5° index angle and a mechanical life of 10,000 cycles, it operates within a -20°C to 70°C temperature range and is washable.
MountingThrough Hole
Quick Jump:
Technical Specifications
Apem PT65503 technical specifications.
General
| Actuator Length | 4.4mm |
| Actuator Material | Polyamide |
| Actuator Type | Rotary |
| Body Material | Thermoplastic |
| Contact Material | Bronze |
| Contact Plating | Gold, Nickel |
| Flammability Rating | UL94 V-0 |
| Illumination Type | Illuminated |
| Index Angle | 22.5° |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Through Hole |
| Number of Poles | 1 |
| Number of Positions | 16 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PT65 |
| Terminal Pitch | 2.54mm |
| Termination | PC Pin |
| Throw Configuration | SP16T |
| DC Rated Voltage | 24V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Apem PT65503 Datasheet
Download the complete datasheet for Apem PT65503 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

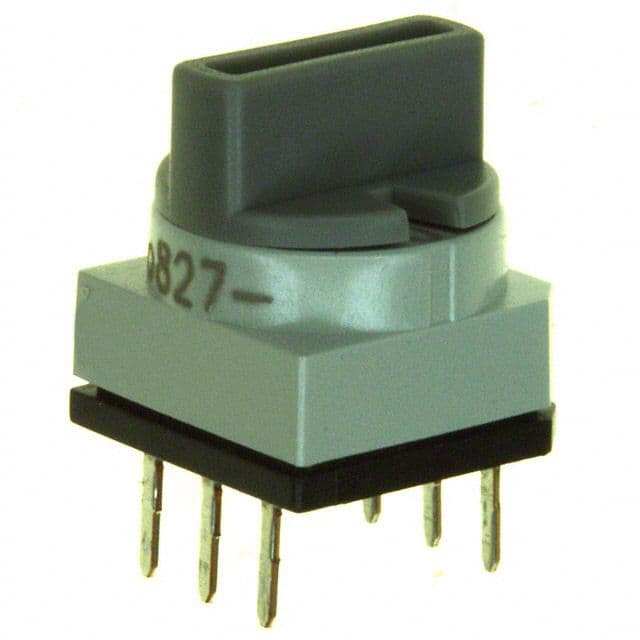

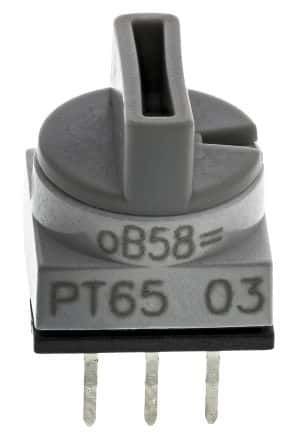

Product Images
